Repair Procedures: Inspection

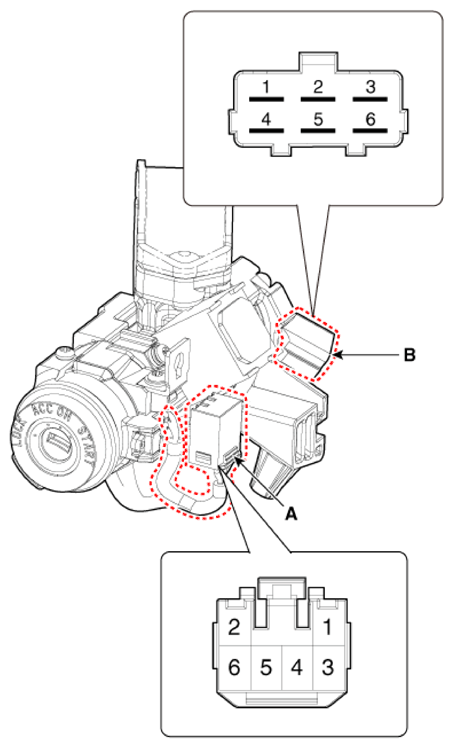

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
    G16513160Courtesy of KIA MOTORS AMERICA, INC.

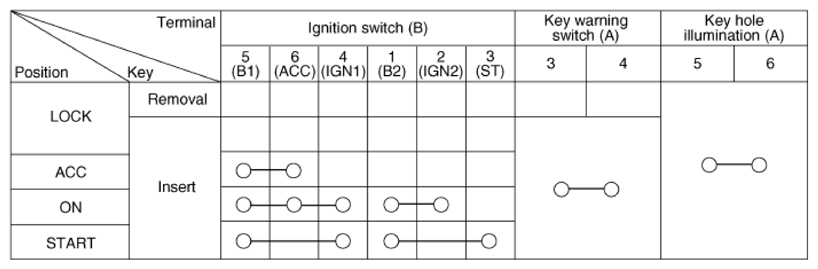

  2. Ignition switch assembly check for continuity between terminals.
    G16513161Courtesy of KIA MOTORS AMERICA, INC.
