Wheel Alignment Repair Procedures

When using the wheel alignment tester to check the wheel alignment align the lift's vehicles horizontally.
Set the transmission gear to 'N'.

Inflate the 4 tires to the specified tire pressure.

Check the steering wheel and tires aligning straight.
Hold the brake pedal depressed using a pedal stopper.

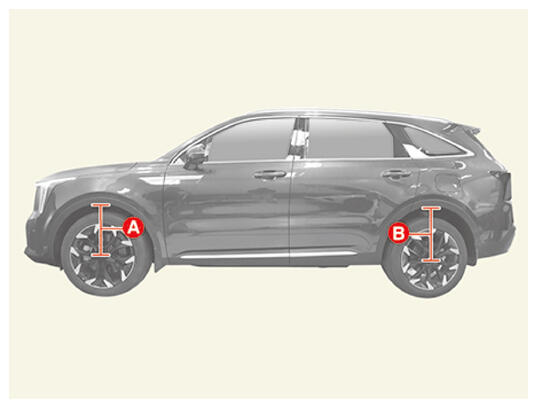

Measure the ride height, which is the distance from the end of the fender to the center of the wheel.
Ride Height:

Front (A): 17.12 - 17.91 in. (435.0 - 455.0 mm)

Rear (B): 17.68 - 18.47 in. (449.0 - 469.0 mm)

Courtesy of KIA MOTORS AMERICA, INC.
Adjust the alignment to the specification.
(Refer to Alignment - " ADJUSTMENT ")

NOTE: Make sure to adjust the rear alignment first with curb weight and then adjust the front alignment by referring to the thrust angle.
After adjusting, shake the vehicle and check if the alignment value returns.
NOTE: If the value changes significantly, check the suspension for free play or bushing damage and wear.
Perform the order below with the KDS.
(S/W Management → EPS - Power Steering → SAS Calibration)

Information

Refer to the KDS screen for operating conditions and details
