Repair Procedures: Disassembly

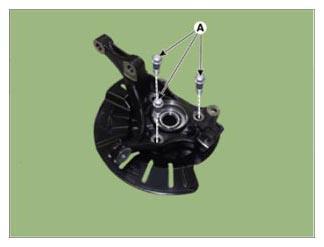

Loosen the hub bearing mounting bolts (A).
Tightening torque:

78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

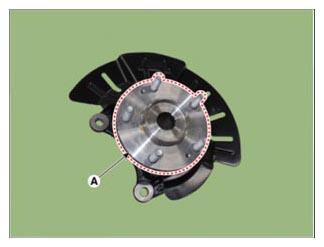

Remove the hub bearing (A) from the knuckle.

Courtesy of KIA MOTORS AMERICA, INC.

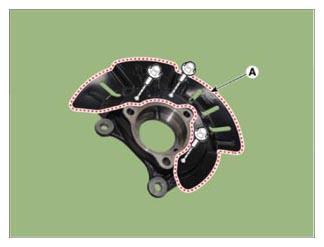

Remove the dust cover (A) from the knuckle.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
