Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

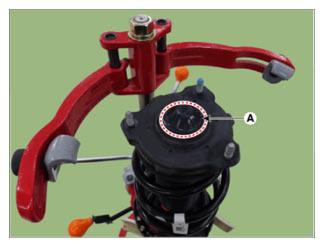

Remove the insulator dust cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

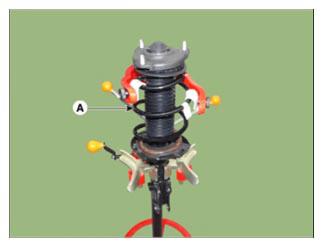

Using the spring compressor, compress the coil spring (A).
Do not compress the spring more than necessary.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.

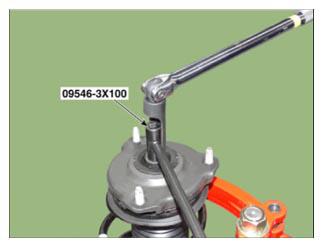

Using SST (09546-3X100), loosen the self locking nut.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the insulator assembly (A), strut bearing (B), spring upper pad (C), bumper stopper (D), dust cover (E), coil spring (F) and spring lower pad (G) from the strut assembly.

Courtesy of KIA MOTORS AMERICA, INC.
