Front View Camera System
›
Front View Camera Unit
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

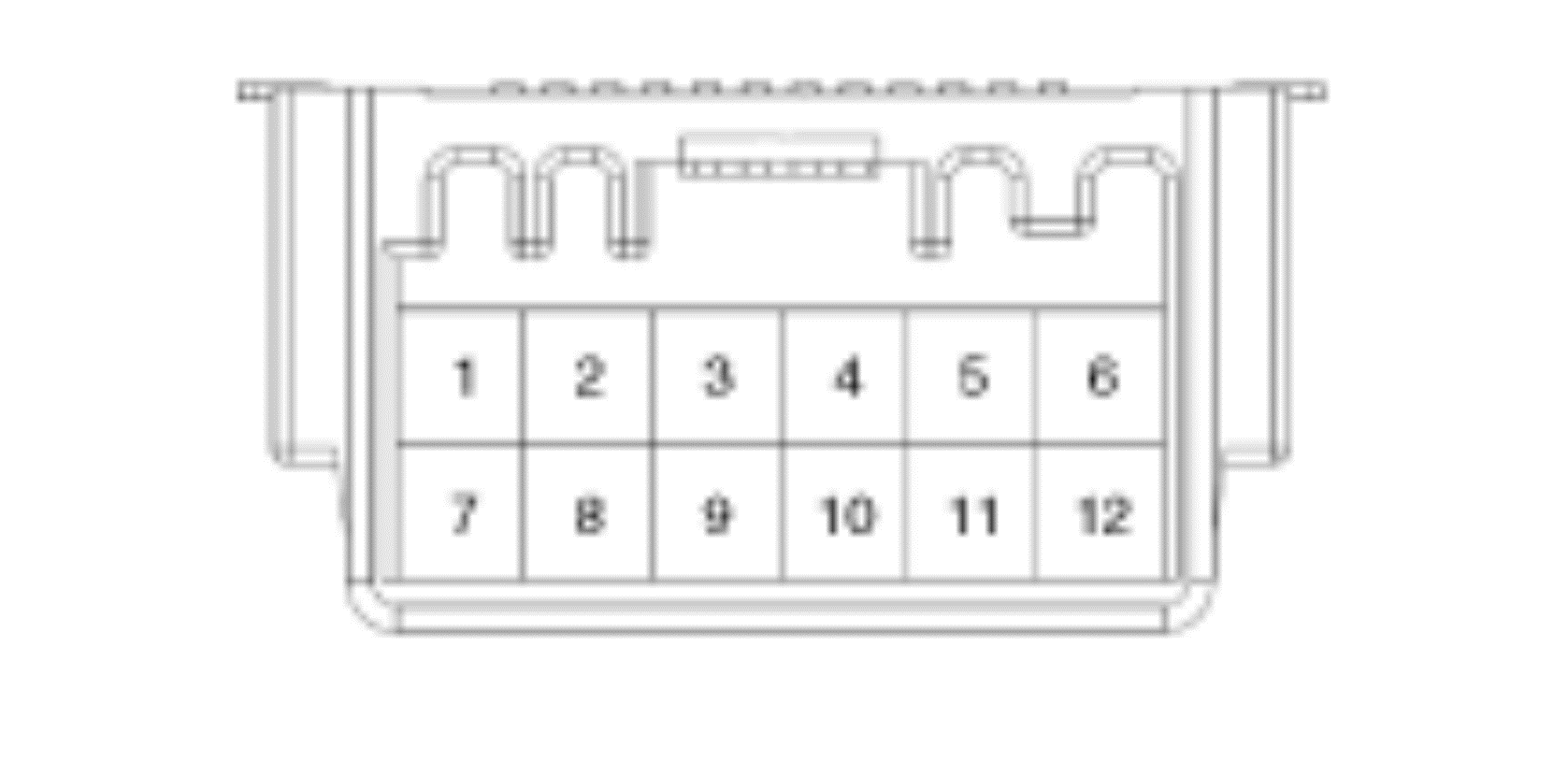

Connector
Pin
Function
Pin
Function
Courtesy of KIA MOTORS AMERICA, INC.
1
-
7
IGN1
2
-
8
-
3
L-CAN (Low)
9
L-CAN (High)
4
C-CAN (Low)
10
C-CAN (High)
5
-
11
Ground
6
-
12
-
