Removal & Installation: Installation

1. Disconnect the negative battery terminal.
2. Remove the crash pad lower panel.

   (Refer to Body - "CRASH PAD LOWER PANEL ")

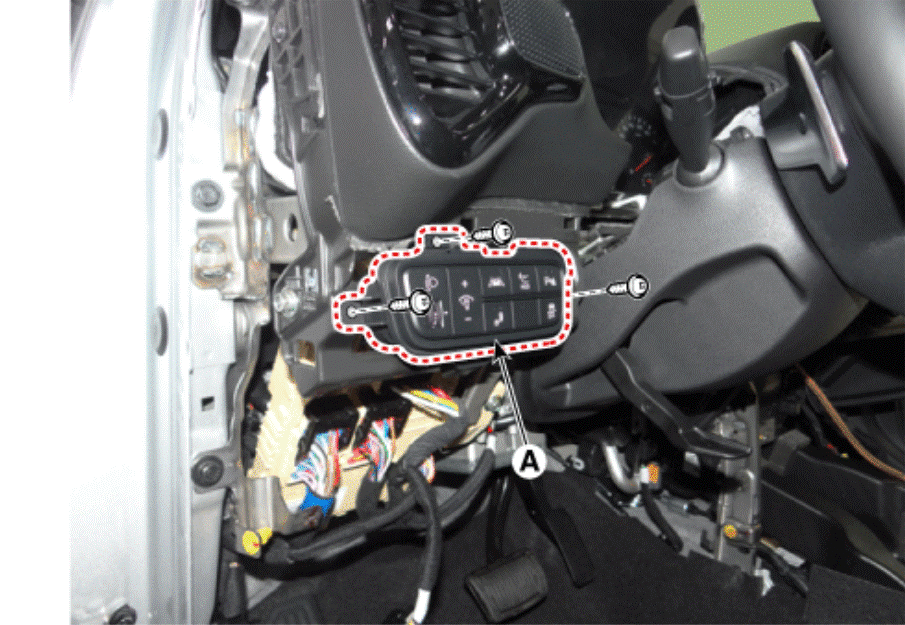

3. Remove the side crash pad switch panel (A) after loosening the mounting screws.

   Courtesy of KIA MOTORS AMERICA, INC.

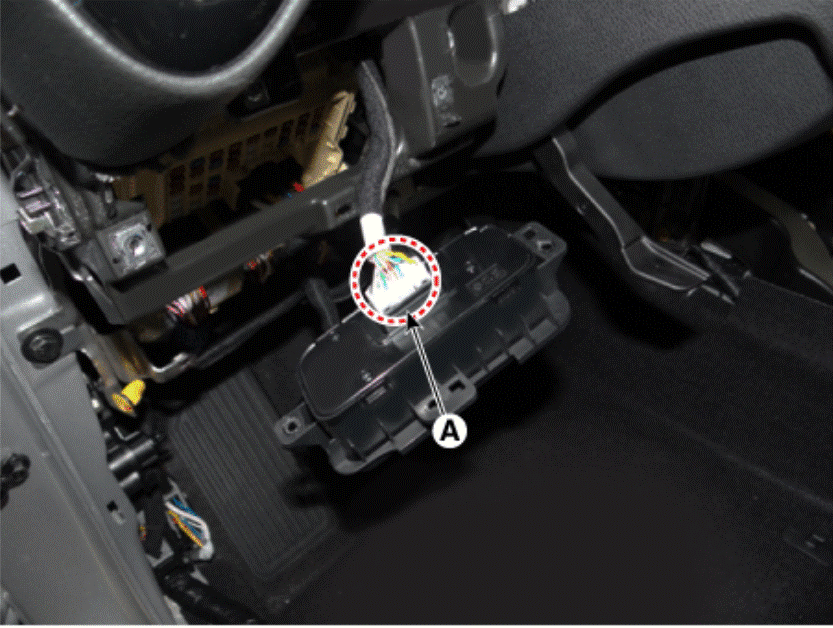

4. Disconnect the side crash pad switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
