Removal & Installation: Removal

Disconnect the battery negative (-) terminal.
NOTE: After disconnecting the battery negative (-) terminal, wait at least 3 minutes and 30 seconds.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

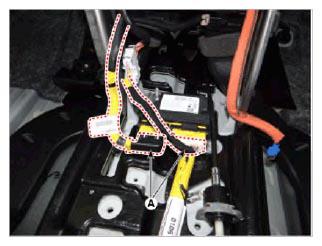

Disconnect the supplemental restraint system control module connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

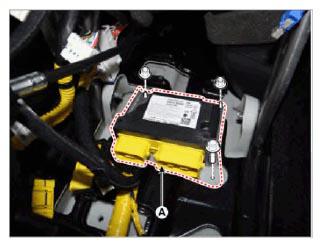

Remove the supplemental restraint system control module (A) after removing the bolt and nuts.
Tightening torque

Bolt: 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8 - 10.1 lb.ft)

Nut: 6.9 - 7.8 N.m (0.7 - 0.8 kgf.m, 5.1 - 5.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
