Test For Changing Position Of Each Ignition Coil

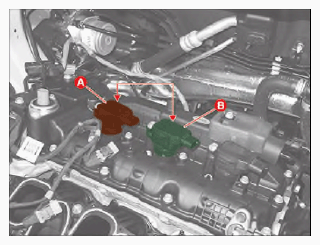

  1. Change the misfired ignition coil (A) and normal ignition coil (B).

    (Refer to Ignition Coil - "REMOVAL AND INSTALLATION ")

    G15693162Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not move with spark plug at the same time (move the ignition coil only)

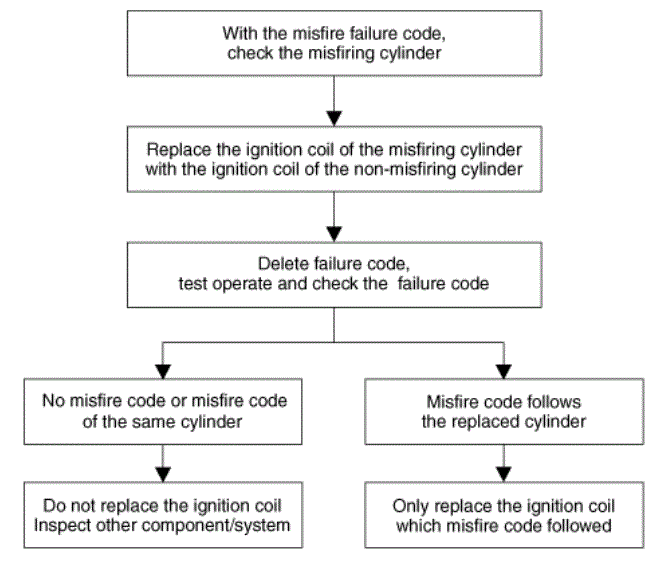

  2. Perform the driving test after deleting the DTC code.
G15693163Courtesy of KIA MOTORS AMERICA, INC.
