FixVault
Home
›
Kia
›
2024
›
Telluride EX, FWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System Diagnosis (13 Of 13)
›
DTC P2B95-00: Cold Start Injection Pulse Performance
›
Wiring Inspection
›

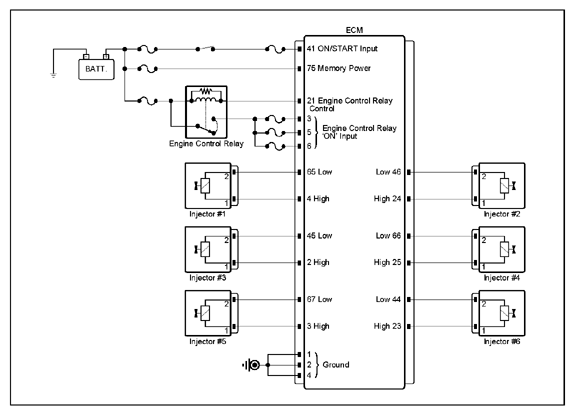

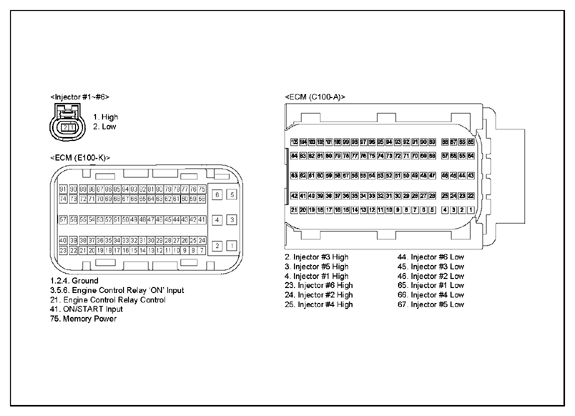

Circuit Inspection
›
Notes
Circuit Inspection: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
