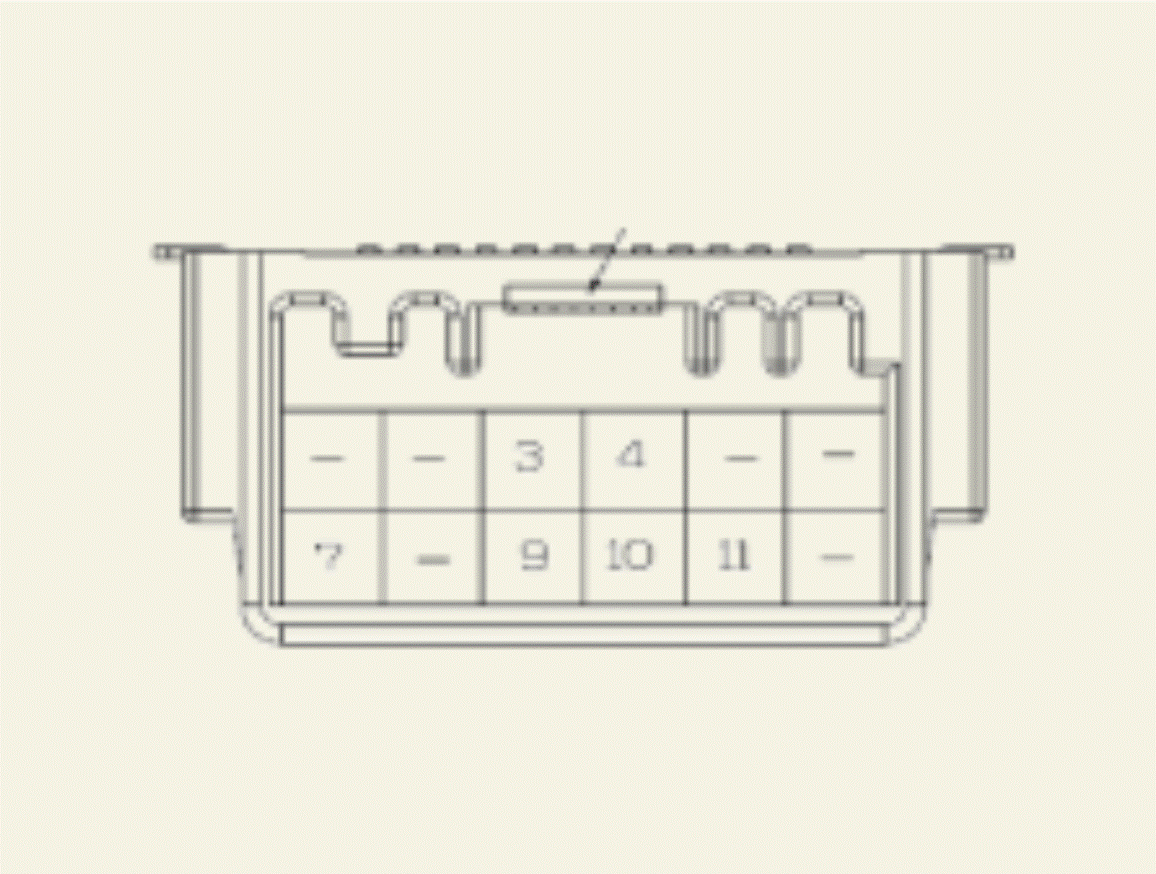

Connector And Terminal Function

Connector	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	-
	2	-
	3	L-CAN (Low)/A-CAN (Low)
	4	C-CAN (Low)
	5	-
	6	-
	7	IG 1
	8	-
	9	L-CAN (High)/A-CAN (High)
	10	C-CAN (High)
	11	Ground
	12	-
