Tailgate Outside Handle Switch

Remove the tailgate lid lower trim.
(Refer to Body - " TAILGATE LID TRIM ")

Check for continuity between the terminals.

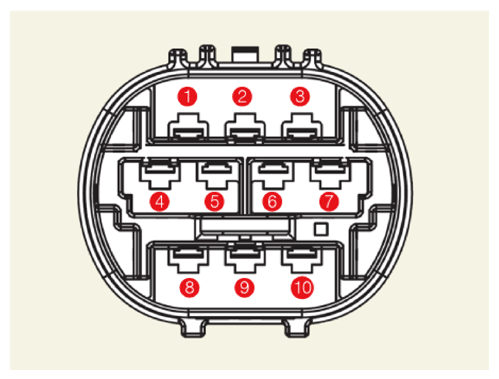

[Type A]

G16426191

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
Terminal	Switch OFF	Switch ON
3 - 4	No continuity	Continuity

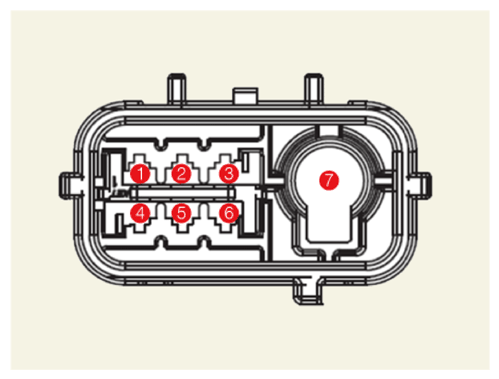

[Type B]

G16426192

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
Terminal	Switch OFF	Switch ON
3 - 4	No continuity	Continuity
