Removal And Installation: Removal: Buzzer

  1. Remove the front bumper assembly.

    (Refer to Body - " FRONT BUMPER ASSEMBLY  ")

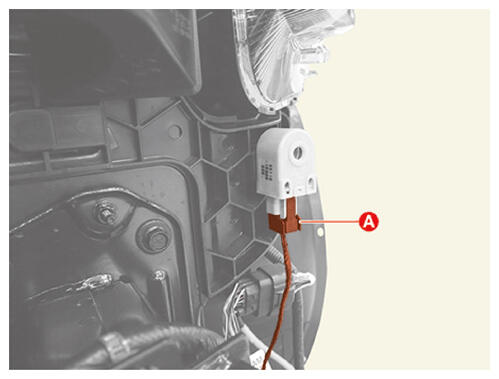

  2. Disconnect the buzzer connector (A).
    G16426188Courtesy of KIA MOTORS AMERICA, INC.

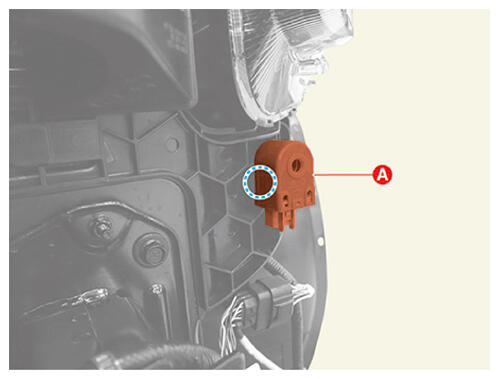

  3. Remove the buzzer (A).
    G16426189Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

    Clip position:
