Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

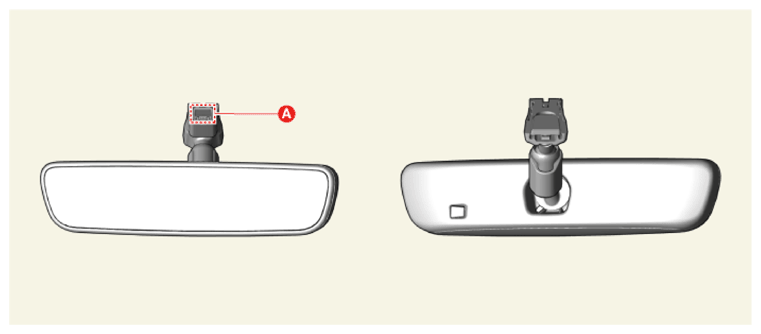

Connector A	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	-
	2	-
	3	-
	4	-
	5	-
	6	-
	7	-
	8	Ground
	9	Back-up lamp signal
	10	IG 1
