Safety Window Motor

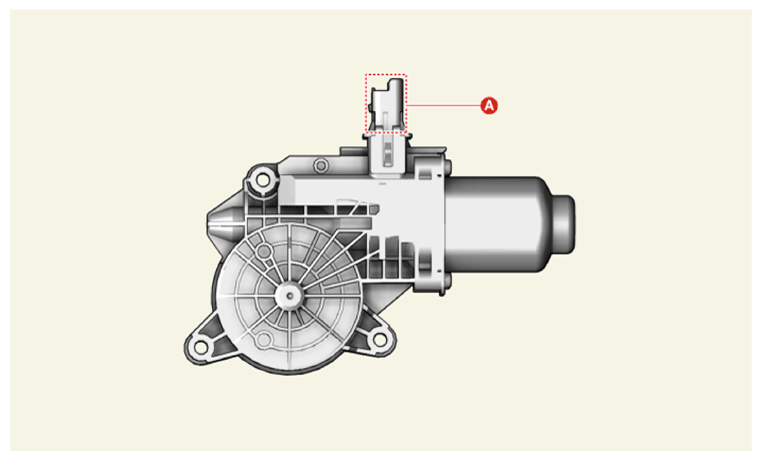

G16426131

Courtesy of KIA MOTORS AMERICA, INC.

Connector A	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Switch signal
	2	-
	3	Ground
	4	Battery (+)
	5	-
	6	LIN
