FixVault
Home
›
Kia
›
2025
›
Seltos X-Line
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System - 2.0L
›
Alternator
›
Components And Components Location
›
Component Location
Component Location

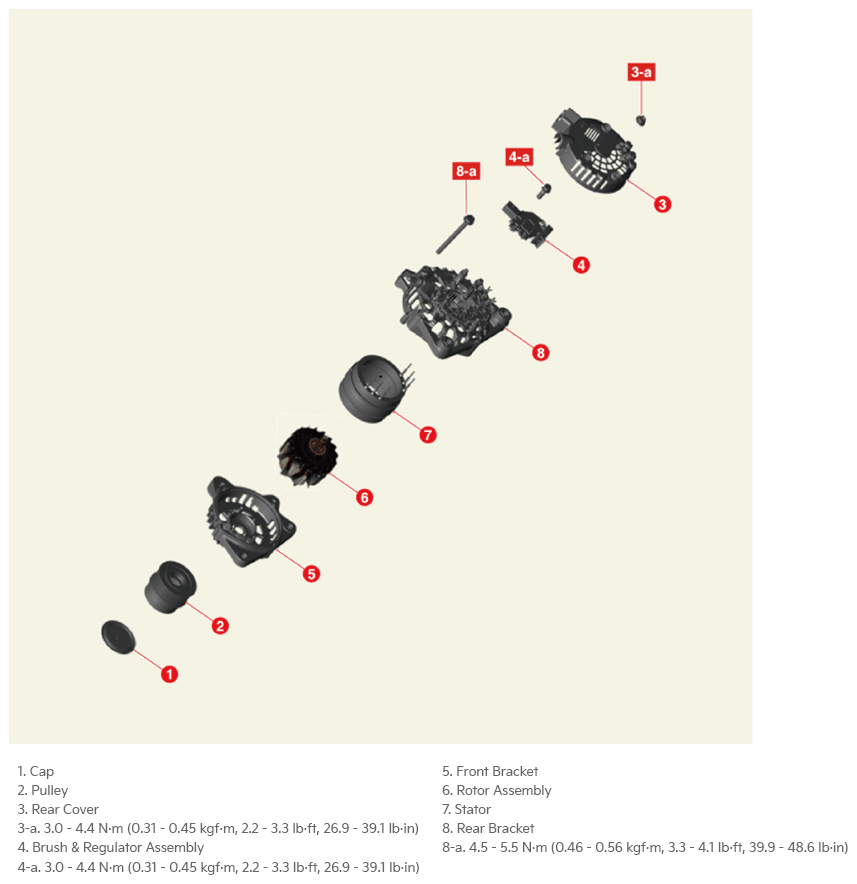

Fig 1: Alternator Components Location With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

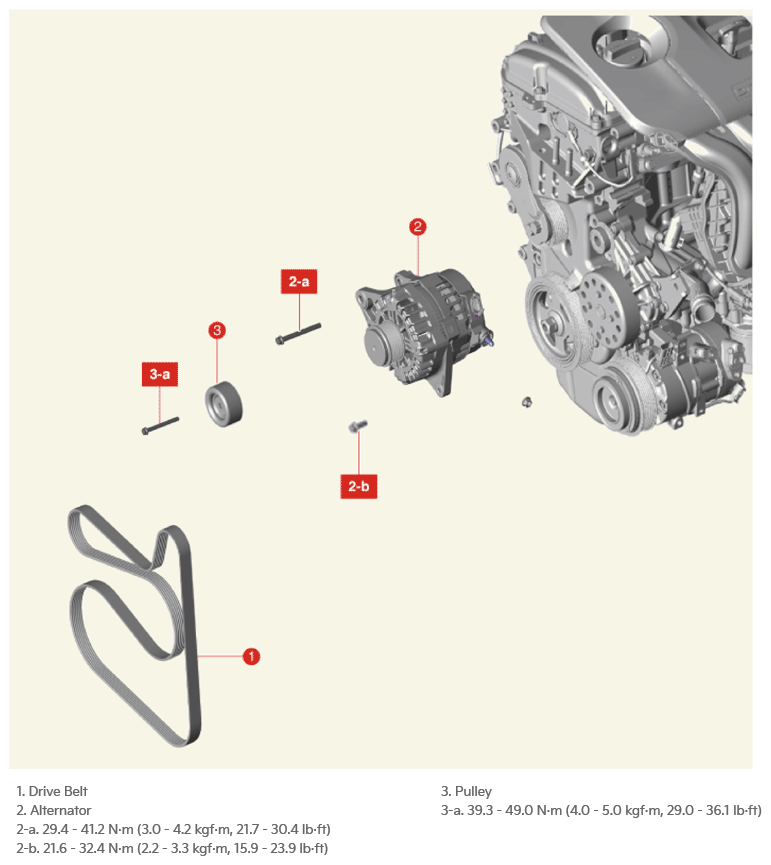

Fig 2: Alternator Components Location With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
