Terminal Function
›
Connector And Terminal Function
›

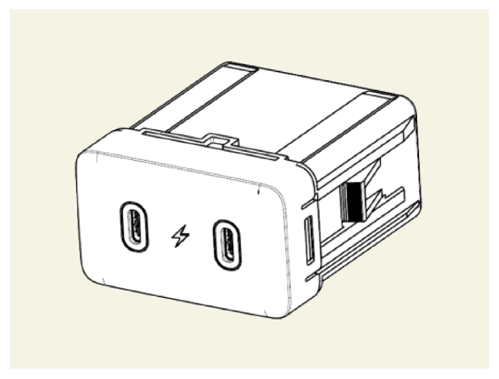

Rear Console Cover
Rear Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Connector
Terminal
Function
Courtesy of KIA MOTORS AMERICA, INC.
1
Ground
2
Ground
3
Illumination (-)
4
Illumination (+)
5
ACC
6
ACC
Courtesy of KIA MOTORS AMERICA, INC.
