Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

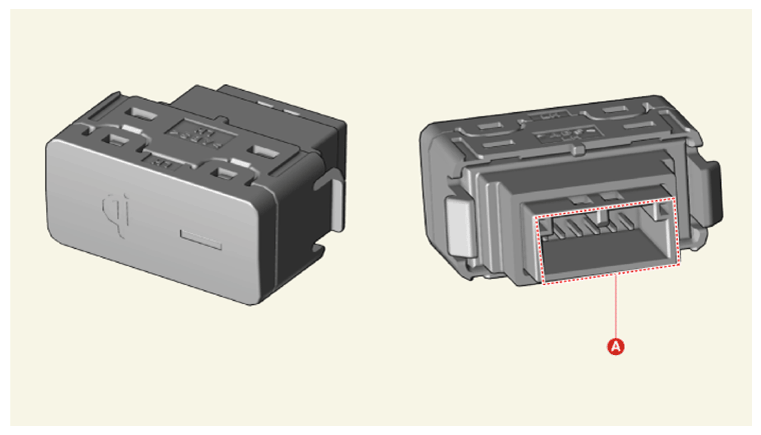

Connector A	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Ground
	2	Wireless charging indicator (Green)
	3	Wireless charging indicator (Amber)
	4	-
	5	Illumination (-)
	6	Illumination (+)
