Removal And Installation: Installation

  1. Install in reverse order of removal.
    NOTE:
    • Install the Camshaft Position Sensor (CMPS) to the specified torque.
    • If the CMPS is dropped, it may cause internal damage. (Do not reuse)

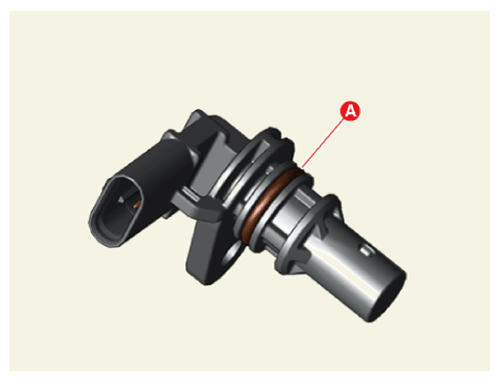

    • Apply the engine oil to the O-ring (A).
      G16423580Courtesy of KIA MOTORS AMERICA, INC.
    • Install the CMPS by pushing it into the installation hole firmly. And be careful not to damage the sensor.
