Component Inspection

Disconnect the battery negative (-) terminal.

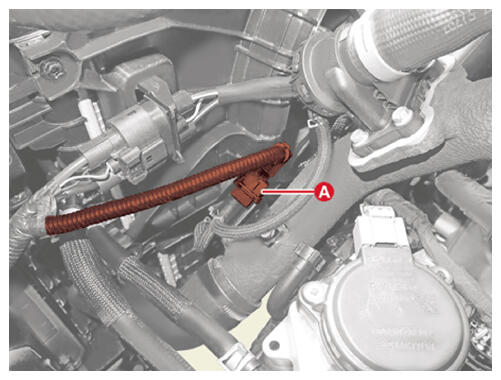

Disconnect the RCV control solenoid valve connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Measure resistance between the terminals.
Specified value: 28.3 - 31.1 Ω
