On Vehicle Inspection

  1. Disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - " ENGINE COVER  ")

  3. Measure the resistance between terminals after disconnecting the Oil Control Valve (OCV) connector (A).

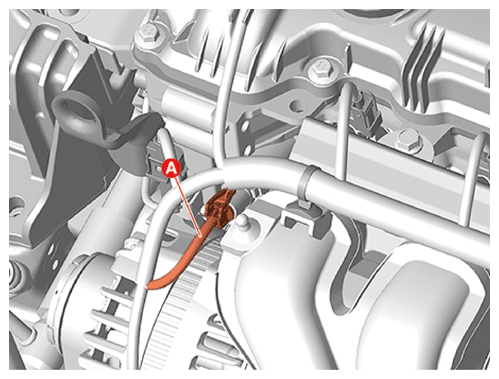

    Intake

    G16427086Courtesy of KIA MOTORS AMERICA, INC.

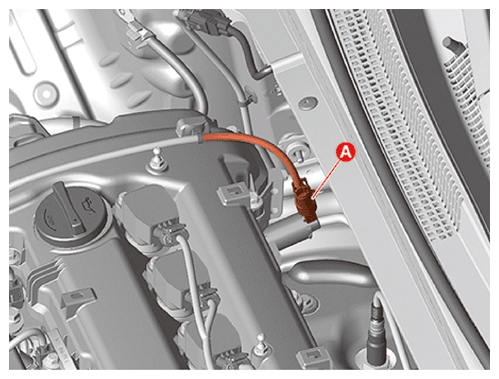

    Exhaust

    G16427087Courtesy of KIA MOTORS AMERICA, INC.
  4. Check that the resistance is within the specification.
    Item Specification
    Coil resistance (MΩ) Minimum 1 [@500 VAC, 20°C (68°F)]
