Removal And Installation: Removal
- Remove the intake manifold.
(Refer to Engine Mechanical System - " INTAKE MANIFOLD REMOVAL AND INSTALLATION ")

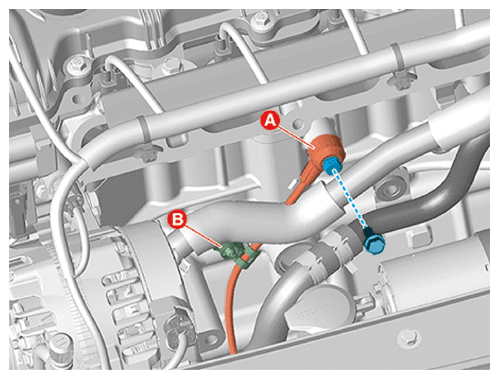

- Remove the Knock Sensor (KS) (A) after removing the fixing clip (B).
Tightening torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
