Removal And Installation: Installation
- Install in reverse order of removal.NOTE:
- Install the Oil Pressure Sensor (OPS) to the specified torque.
- If the OPS is dropped, it may cause internal damage. (Do not reuse)
- Be careful not to get engine oil and/or coolant flow into the OPS connector.

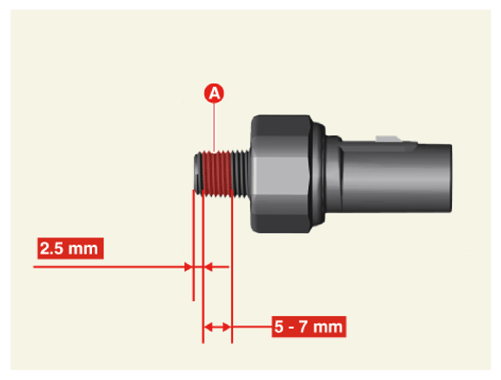

- Apply the seal lock to part (A) when installing the OPS.
Thickness: 0.2 - 0.4 mm (0.0078 - 0.0157 in)
