Delivery Pipe
›
Components And Components Location
›
Component Location
Component Location

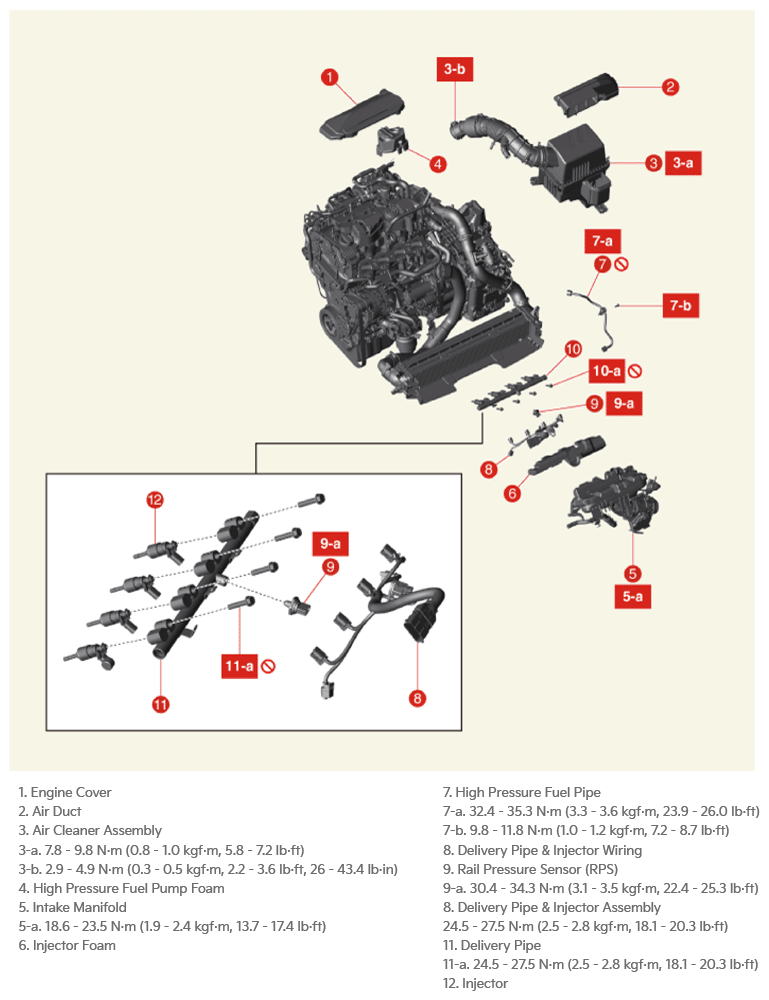

Fig 1: Delivery Pipe Components Location With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Delivery Pipe Components Location With Torque Specification (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
