Component Inspection
- Remove the rear seat cushion.
(Refer to REAR SEAT CUSHION COVER )

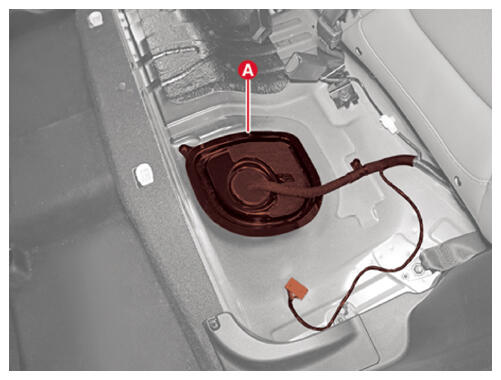

- Remove the fuel pump service cover (A).

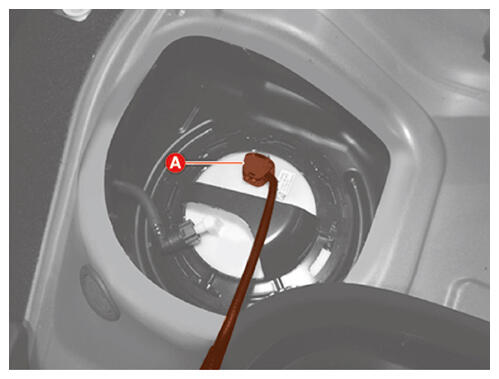

- Disconnect the fuel pump module connector (A).
- Check the fuel pump operation.

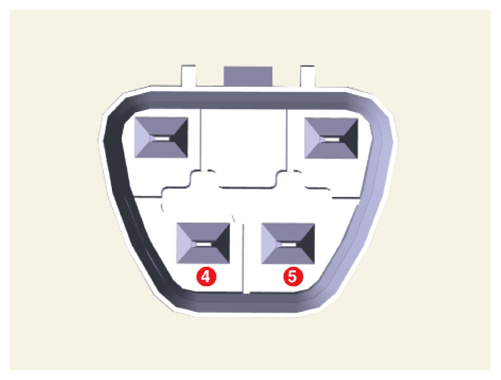

| Terminal | Function |
|---|---|
| 4 | (+) |
| 5 | (-) |
(Refer to REAR SEAT CUSHION COVER )
| Terminal | Function |
|---|---|
| 4 | (+) |
| 5 | (-) |
