Removal And Installation: Removal

NOTE: Cover the connection with a clean cloth since the residual fuel may be released after "Release Residual Pressure in Fuel Line" procedures.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.
Remove the rear seat cushion.
(Refer to REAR SEAT CUSHION COVER )

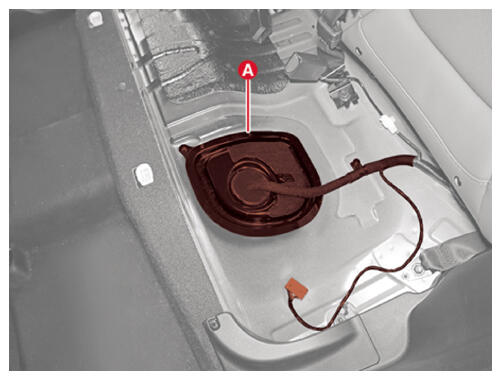

Remove the fuel pump service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

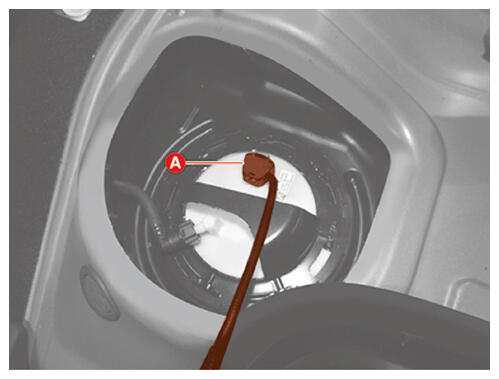

Disconnect the fuel pump module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

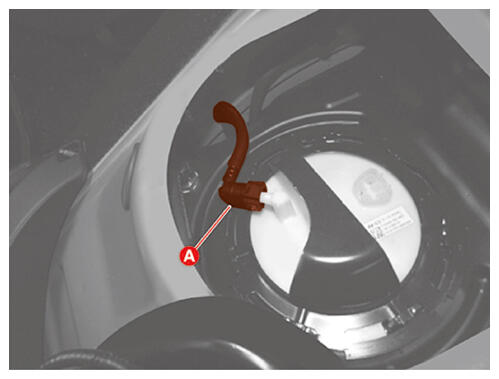

Separate the fuel feed tube (A).

Courtesy of KIA MOTORS AMERICA, INC.

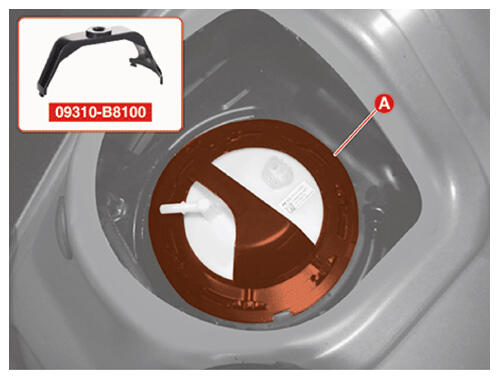

Remove the plate cover by using the SST (09310 - B8100).

Courtesy of KIA MOTORS AMERICA, INC.

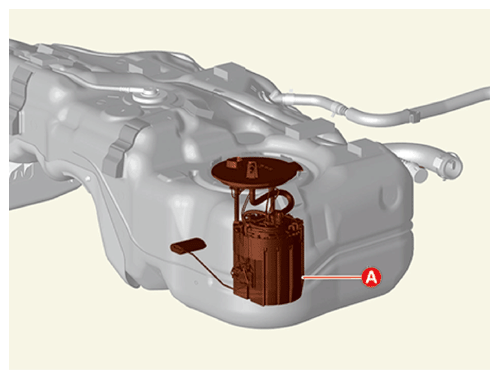

Remove the fuel pump module (A) from the fuel tank.
