Removal And Installation: Installation

  1. Install in reverse order of removal.
    NOTE:

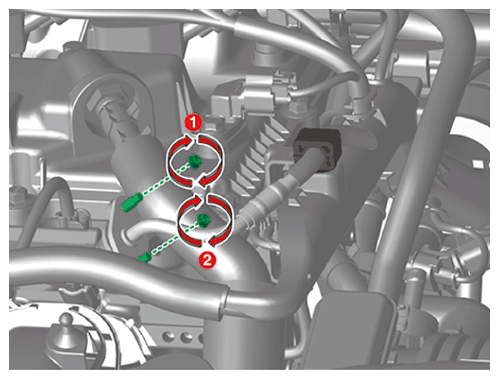

    • When installing the fuel feed tube to the delivery pipe, tighten the nuts alternately in order.

      Tightening torque:

      8.8 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.5 - 8.7 lb.ft)

      G16427271Courtesy of KIA MOTORS AMERICA, INC.

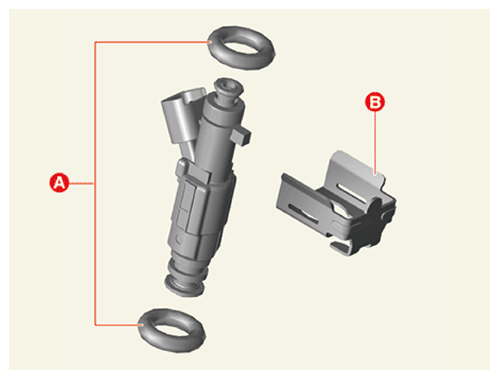

    • Replace the O-rings (A) and clip (B) with new one, when reusing the injector.
    • Apply engine oil to the O-rings (A).
      G16427272Courtesy of KIA MOTORS AMERICA, INC.
