Circuit Inspection

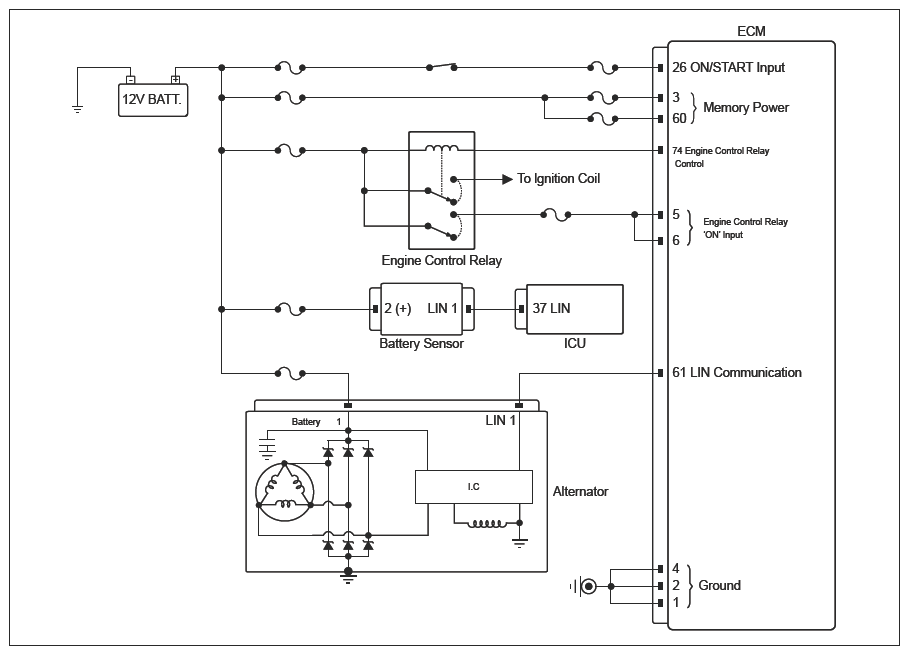

G16435557

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Item	Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Item	Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Power inspection (Alternator ↔ Chassis ground)	Connect the connector(s) alternator. Ignition "ON".	Alternator connector	1 (B+)	Chassis ground	-	B+
Voltage inspection (Alternator ↔ Chassis ground)	Connect the connector(s) alternator. Ignition "ON".	Alternator connector	1 (LIN)	Chassis ground	-	Approx. 10.9V
Power inspection (Alternator ↔ Chassis ground)	Disconnect the connector(s) alternator. Ignition "ON".	Alternator connector	1 (B+)	Chassis ground	-	B+
Voltage inspection (Alternator ↔ Chassis ground)	Disconnect the connector(s) alternator. Ignition "ON".	Alternator connector	1 (LIN)	Chassis ground	-	Approx. 11.4V

Good

Go to "SYSTEM INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
