Rear - Multi Link: Camber

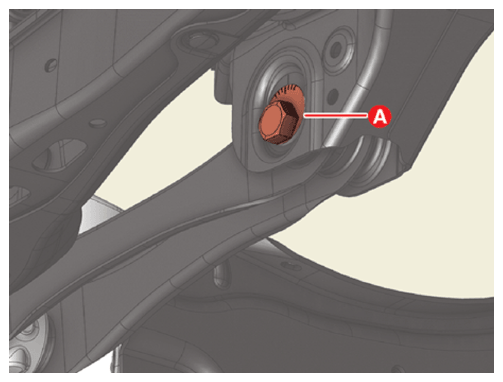

Turn the cam bolts (A) attached with the rear lower arm clockwise or counterclockwise to adjust the camber.
Camber Angle:
-1.2 ± 0.5°
| Cam bolt |
Rotation |
Increase/Decrease |
| RH |
Clockwise |
+ Camber |
| LH |
Clockwise |
- Camber |
 Courtesy of KIA MOTORS AMERICA, INC.
|
