Transfer Oil: Inspection

Information

Inspect and replace transfer oil every 4 years or 60, 000 km (37, 000 mile).

1. Remove the engine room under cover.

   G 1.6 T-GDI GAMMA II (Refer to Engine Mechanical System - " 1.6L ENGINE ROOM UNDER COVER  ")

   G 2.0 MPI NU (Refer to Engine Mechanical System - " 2.0L ENGINE ROOM UNDER COVER  ")

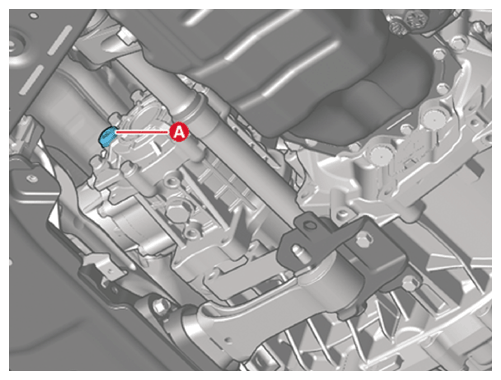

2. Remove the filler plug (A).

   Courtesy of KIA MOTORS AMERICA, INC.

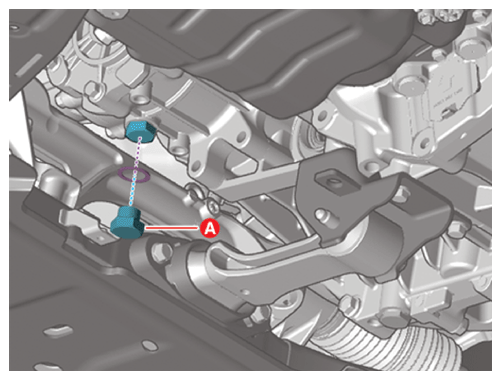

3. Remove the drain plug (A), wait for at least 10 minutes until the oil is fully drained, and then reinstall the drain plug.

   Tightening torque:

   39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • Do not reuse the drain plug gasket (A).

     Courtesy of KIA MOTORS AMERICA, INC.

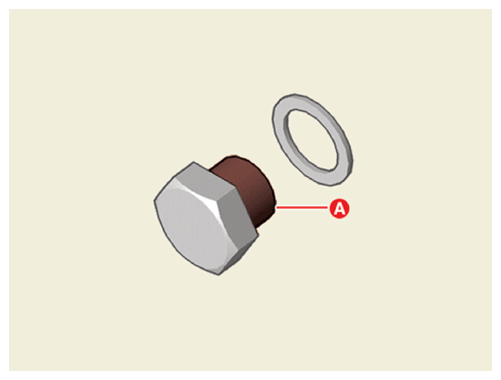

   • Apply Loctite 592 or equivalent on thread (A) before installing new drain plug.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Check the amount of drained oil and fill the specified amount of oil through the filler plug hole.

   Capacity:

   About 0.50 l  (0.13 U.S.gal., 0.52 U.S.qt, 0.43 Imp.qt.)

   Recommended:

   Hypoid gear oil API GL-5 SAE 75W/85 (SK HCT-5 gear oil 75W/85) or equivalent

5. Install the filler plug (A).

   Tightening torque:

   39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: Do not reuse the filler plug gasket (A).

   Courtesy of KIA MOTORS AMERICA, INC.

6. Install the engine room under cover.

   G 1.6 T-GDI GAMMA II (Refer to Engine Mechanical System - " 1.6L ENGINE ROOM UNDER COVER  ")

   G 2.0 MPI NU (Refer to Engine Mechanical System - " 2.0L ENGINE ROOM UNDER COVER  ")
