Removal And Installation: Installation

Install in reverse order of removal.

NOTE:

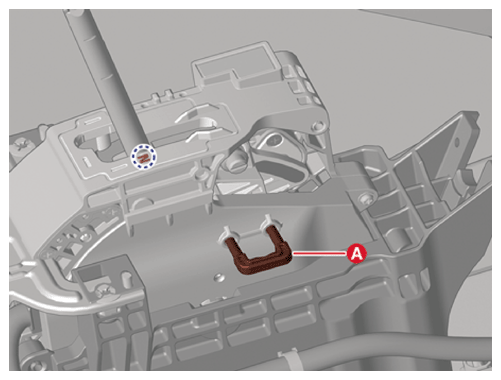

Insert "N" range fixing pin (A) after checking shift lever and the manual control lever are in the "N" range before installation.

Courtesy of KIA MOTORS AMERICA, INC.

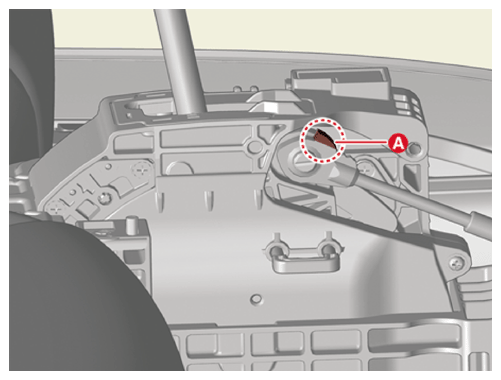

Install the shift cable after checking the direction of tab (A) to prevent incorrect assembly.

Courtesy of KIA MOTORS AMERICA, INC.

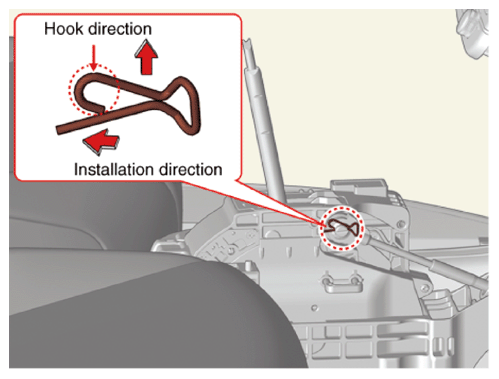

Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

Courtesy of KIA MOTORS AMERICA, INC.

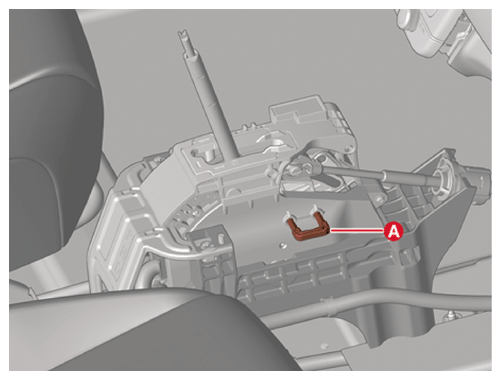

Make sure to get rid of "N" range fixing pin (A) after installing the shift lever assembly.

Courtesy of KIA MOTORS AMERICA, INC.
