Removal And Installation: Removal

  1. Disconnect the battery negative (-) terminal.

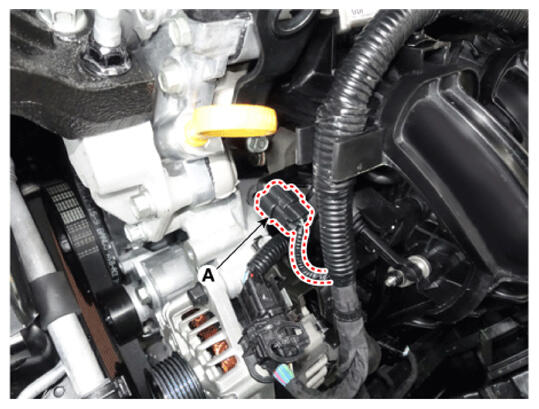

  2. Disconnect the Variable Intake Solenoid (VIS) connector (A).
    G16477682Courtesy of KIA MOTORS AMERICA, INC.

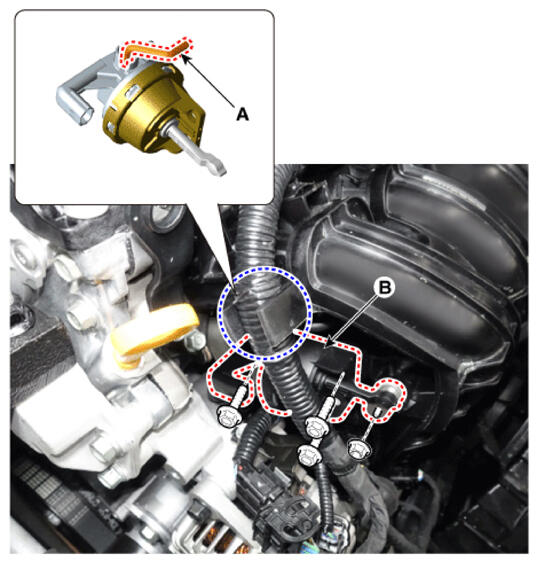

  3. Remove the VIS (B) by loosening the mounting bolts after disconnecting the hose (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

G16477683Courtesy of KIA MOTORS AMERICA, INC.
