Removal And Installation: Installation
- Install in the reverse order of removal.NOTE:

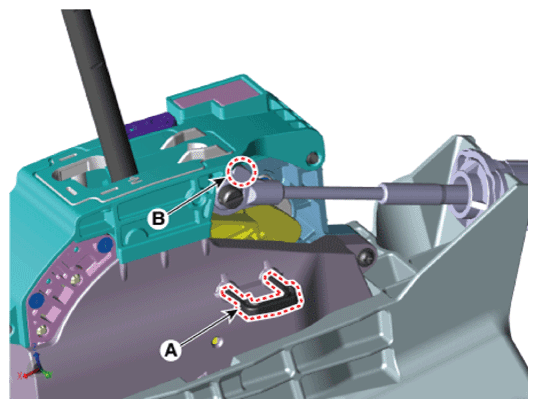

- Before installing the shift cable, insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.
- Install the shift cable after checking the direction of projection (B) to prevent incorrect assembly.

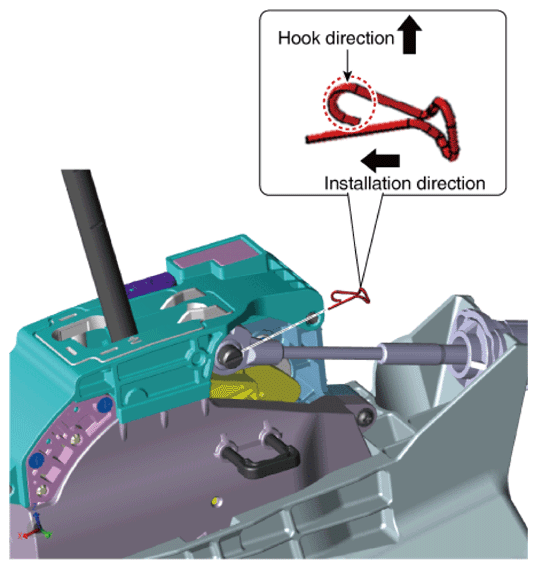

- Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

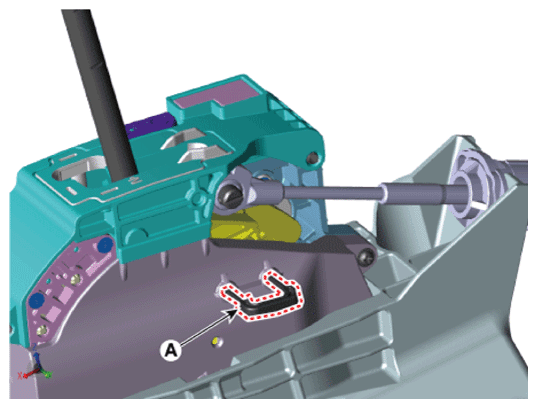

- Make sure to get rid of "N range fixing pin" (A) after installing the shift lever assembly.
- Operate the shift lever to check whether each position (P, R, N, D) works.
