Removal And Installation: Removal

Disconnect the battery negative (-) terminal.

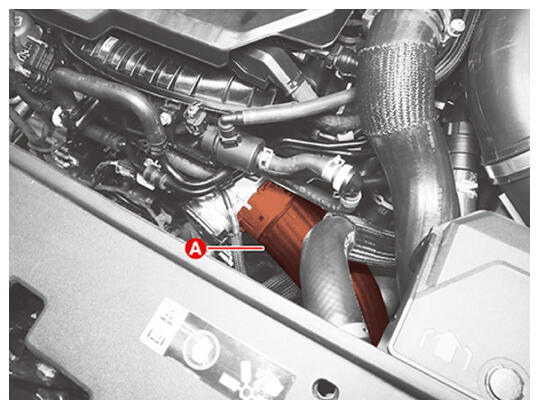

Remove the intake hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

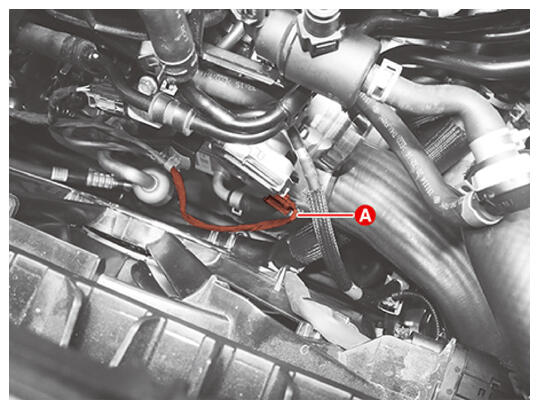

Disconnect the Electronic Throttle Control (ETC) module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

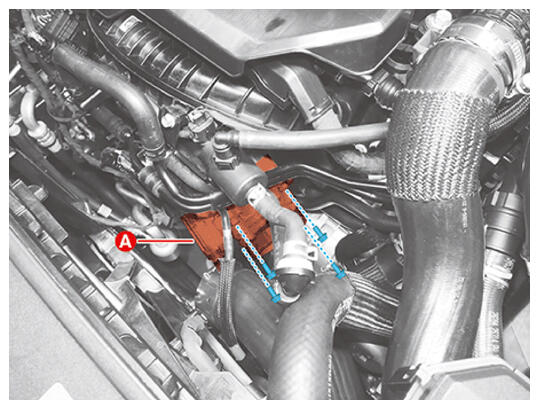

Remove the ETC module (A) after removing the mounting bolts.
Tightening torque: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
