Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

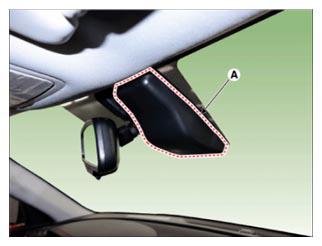

  2. Remove the cover (A).
    G15717390Courtesy of KIA MOTORS AMERICA, INC.

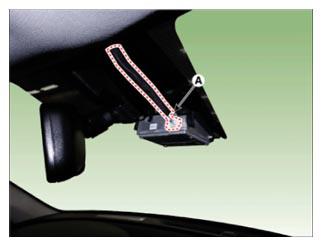

  3. Disconnect the front view camera unit connector (A).
    G15717391Courtesy of KIA MOTORS AMERICA, INC.

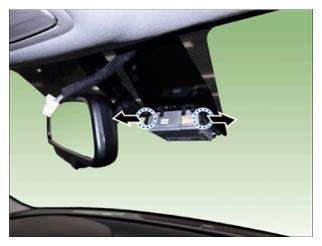

  4. Remove the front view camera unit (A) by releasing the hooks.
G15717392Courtesy of KIA MOTORS AMERICA, INC.
