Home › Kia › 2025 › Soul EX › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Button Engine Start System › Start/Stop Button › Repair Procedures › Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat heater switch. [Driver side]

    (Refer to Seat Electrical - "REMOVAL ")

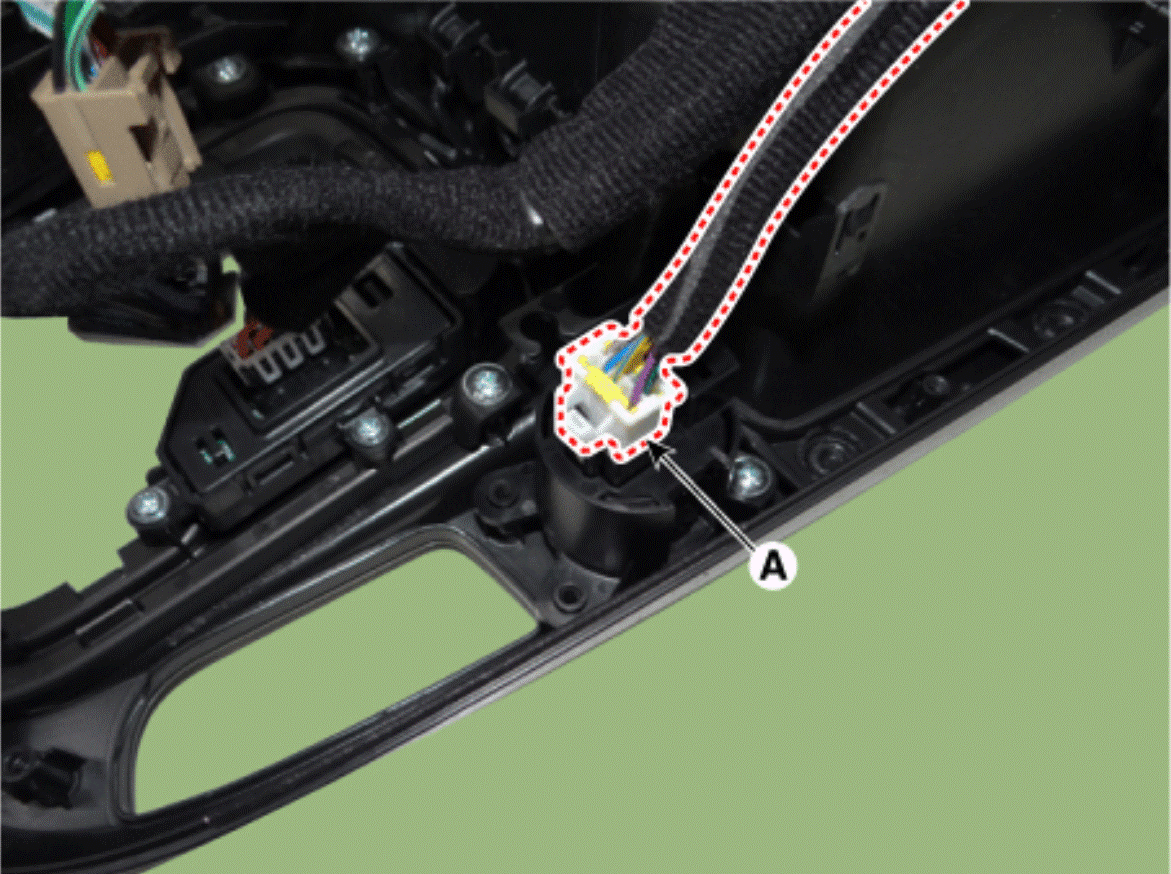

  3. Disconnect the start/stop button connector (A).
    G15715950Courtesy of KIA MOTORS AMERICA, INC.

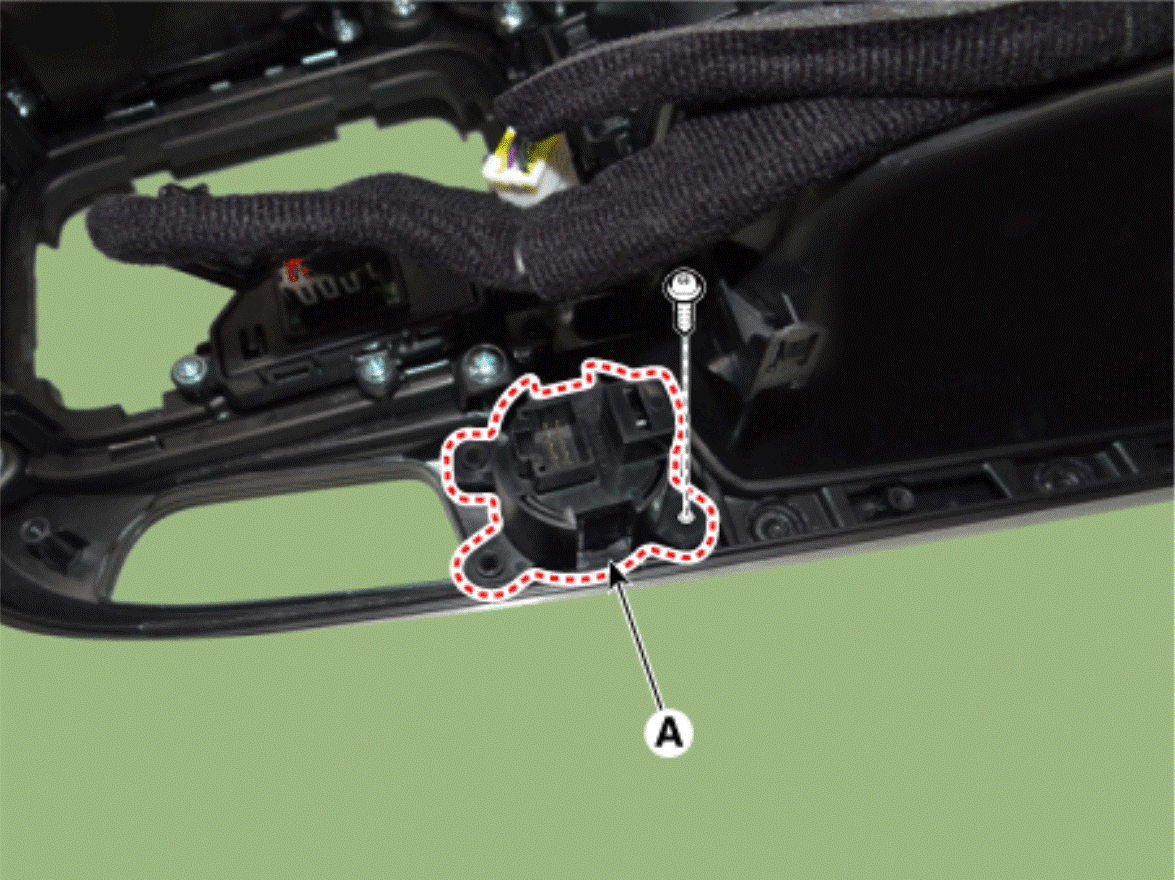

  4. Remove the start/stop button (A) by loosening the screw.
G15715951Courtesy of KIA MOTORS AMERICA, INC.
