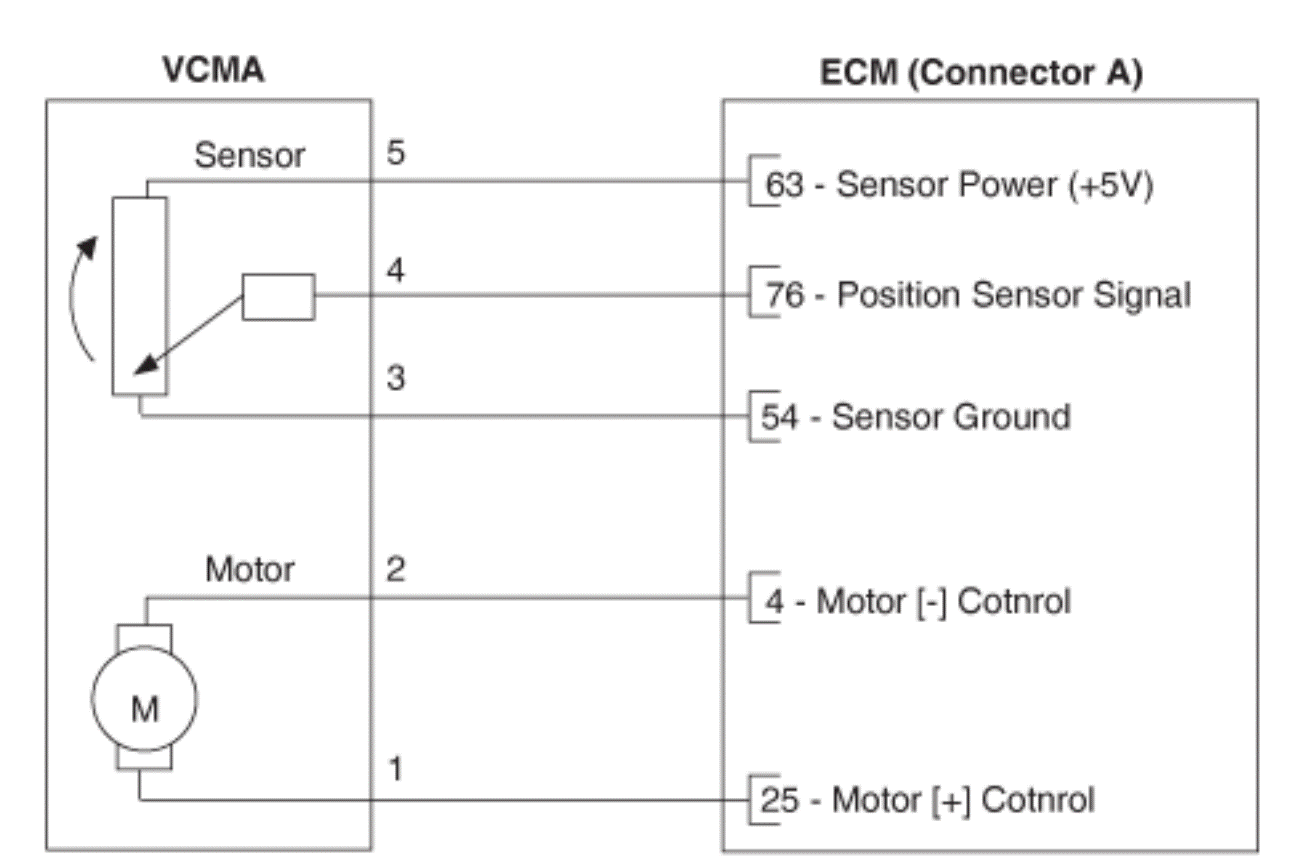

Home › Kia › 2025 › Soul EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Variable Charge Motion Actuator (VCMA) › Schematic Diagrams › Circuit diagram › Notes
