Driven Pulley Pressure Sensor
›
Components And Components Location
›
Component Location
Component Location

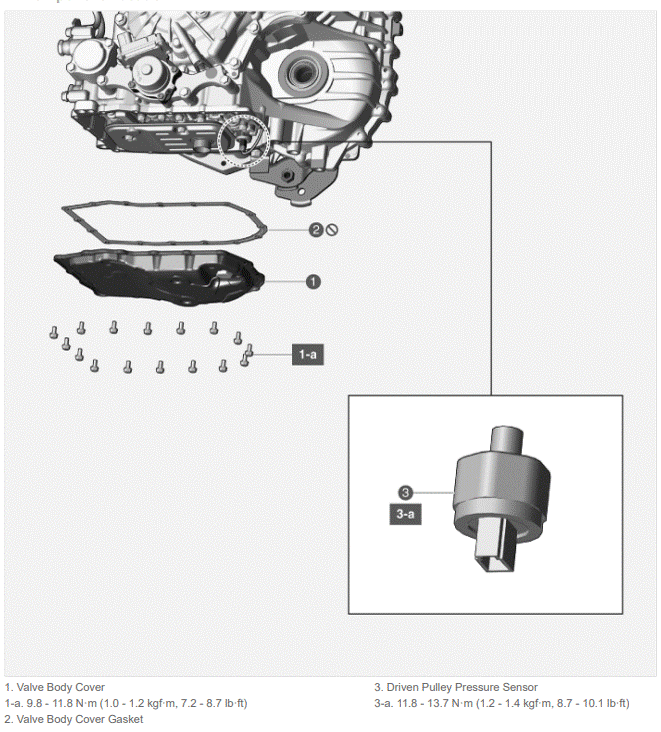

Fig 1: Driven Pulley Pressure Sensor Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
