Occupant Detection System (ODS) Unit

1. Disconnect the battery negative terminal.
   NOTE: After disconnecting the cables, wait at least 30 seconds.
2. Remove the passenger seat assembly.

   (Refer to Body - "FRONT SEAT ASSEMBLY ")

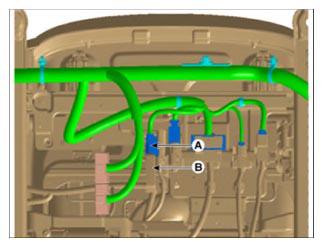

3. Disconnect the connector (A) and then remove the Occupant Detection System [ODS] (B) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
