Special Service Tools: Notes

Tool Name/Number	Illustration	Description

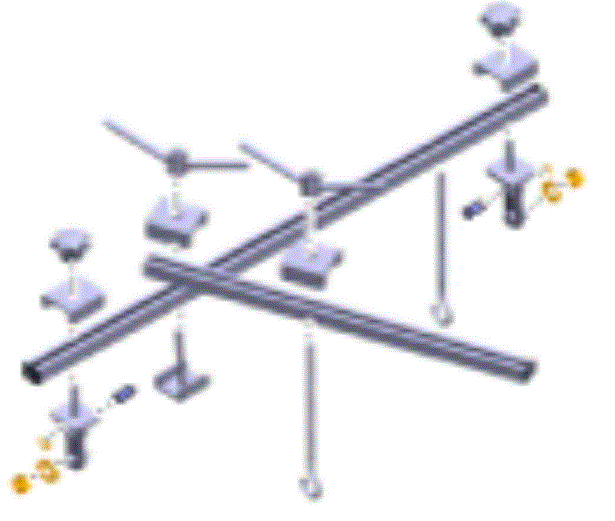

Engine support fixture (bar) 09200 - 3N000	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing transaxle Used with the adapter (09200 - 4X000) and supporter (09200 - 2S000) Refer to the engine support fixture assembly drawing below.

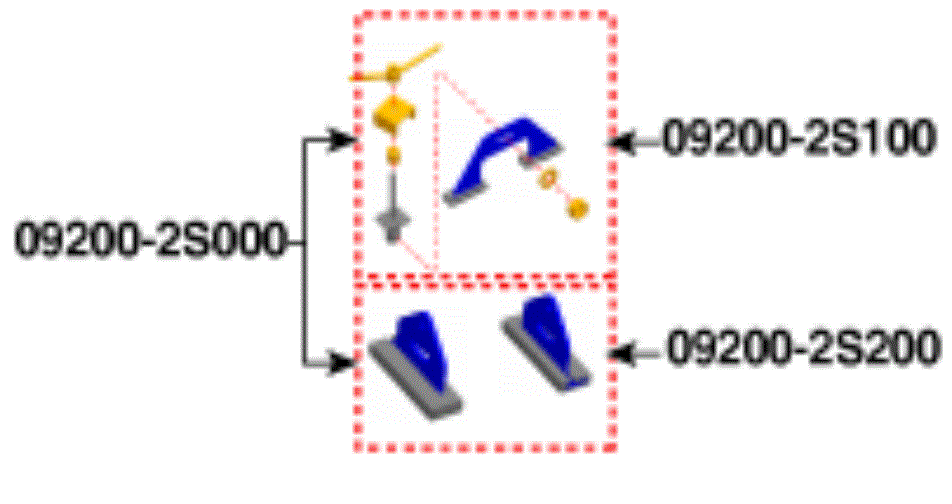

Engine support fixture assembly 09200 - 2S000 Engine support fixture 09200 - 2S100 09200 - 2S200	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing transaxle Used with the bar (09200 - 3N000) and adapter (09200 - 4X000) Refer to the engine support fixture assembly drawing below.
Engine support fixture (adapter) 09200 - 4X000	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing transaxle Used with the bar (09200 - 3N000) and supporter (09200 - 2S000) Refer to the engine support fixture assembly drawing below.
Oil seal installer 09452 - 26100	Courtesy of KIA MOTORS AMERICA, INC.	Installation of transaxle case oil seal. Used with the handle (09231 - H1100)
Handle 09231 - H1100	Courtesy of KIA MOTORS AMERICA, INC.	Installation of transaxle case oil seal. Used with the installer (09452 - 26100)
Position switch guide pin 09480 - A3800	Courtesy of KIA MOTORS AMERICA, INC.	Used for fixing "N" range when installing inhibitor switch
