Steering Columns: Overhaul: Reassembly

To reassemble steering column components, reverse disassembly procedure. Make sure bolt mounting steering column shaft and lower shaft faces vertically.

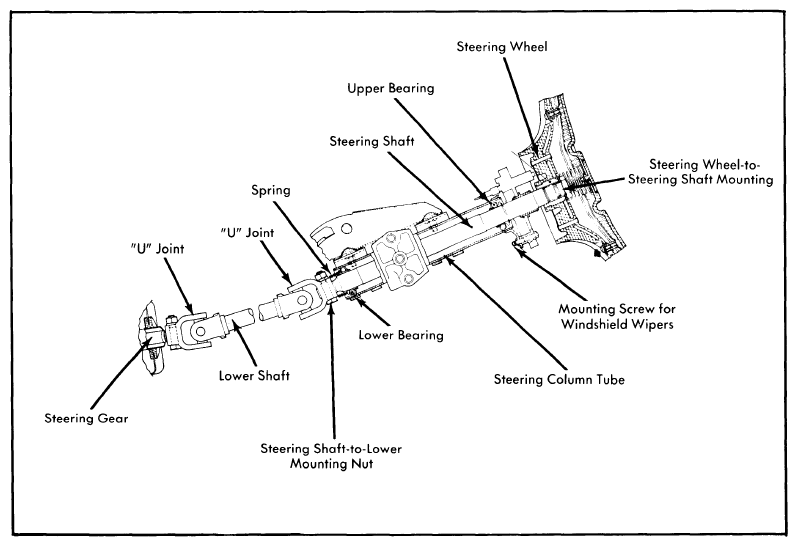

Fig 1: Sectional View of Lancia Beta Steering Column for Component Identification

Courtesy of NOT AVAILABLE
