Wiring Diagrams

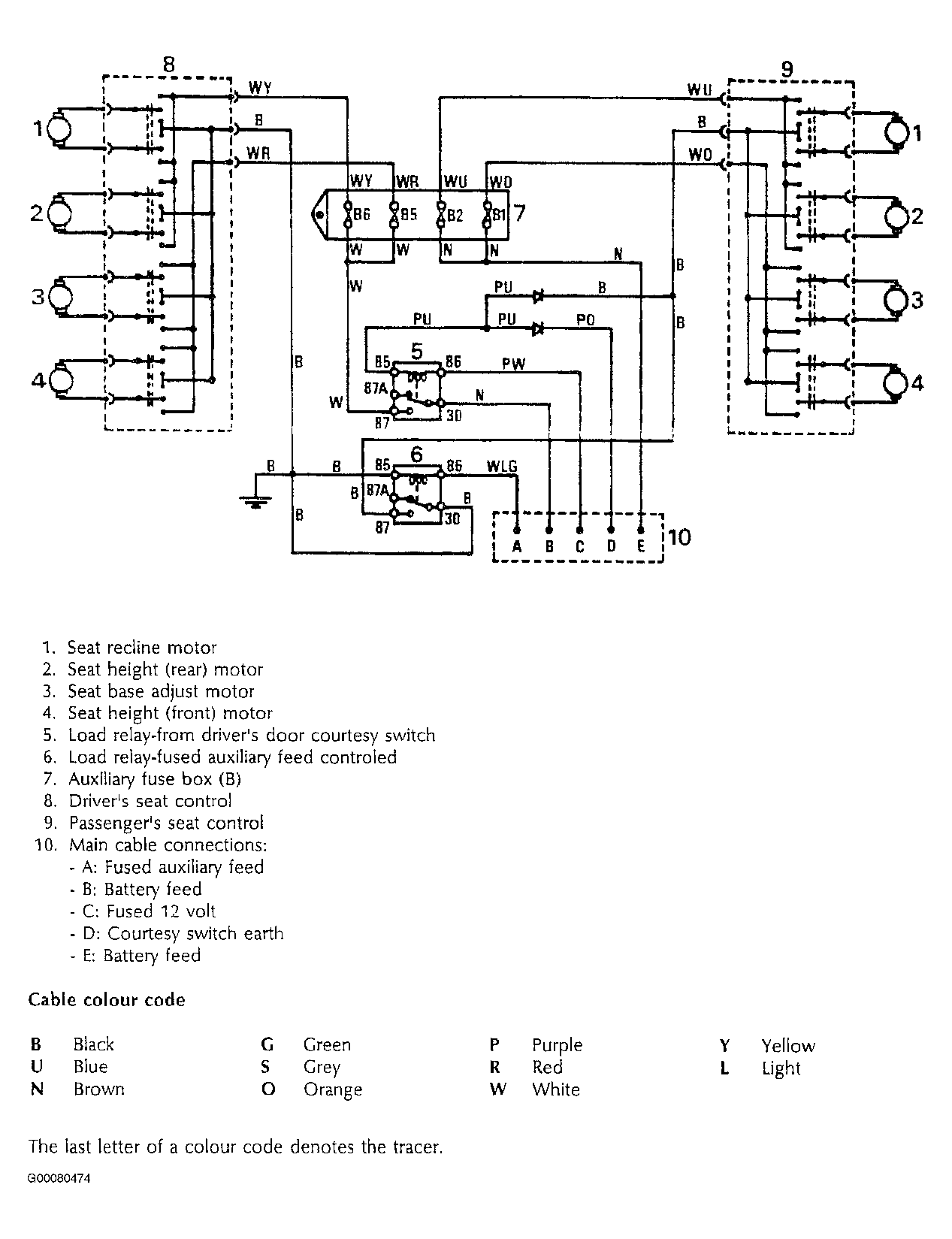

Fig 1: Power Seats Wiring Diagram (1987)
Courtesy of LAND ROVER NORTH AMERICA, INC.

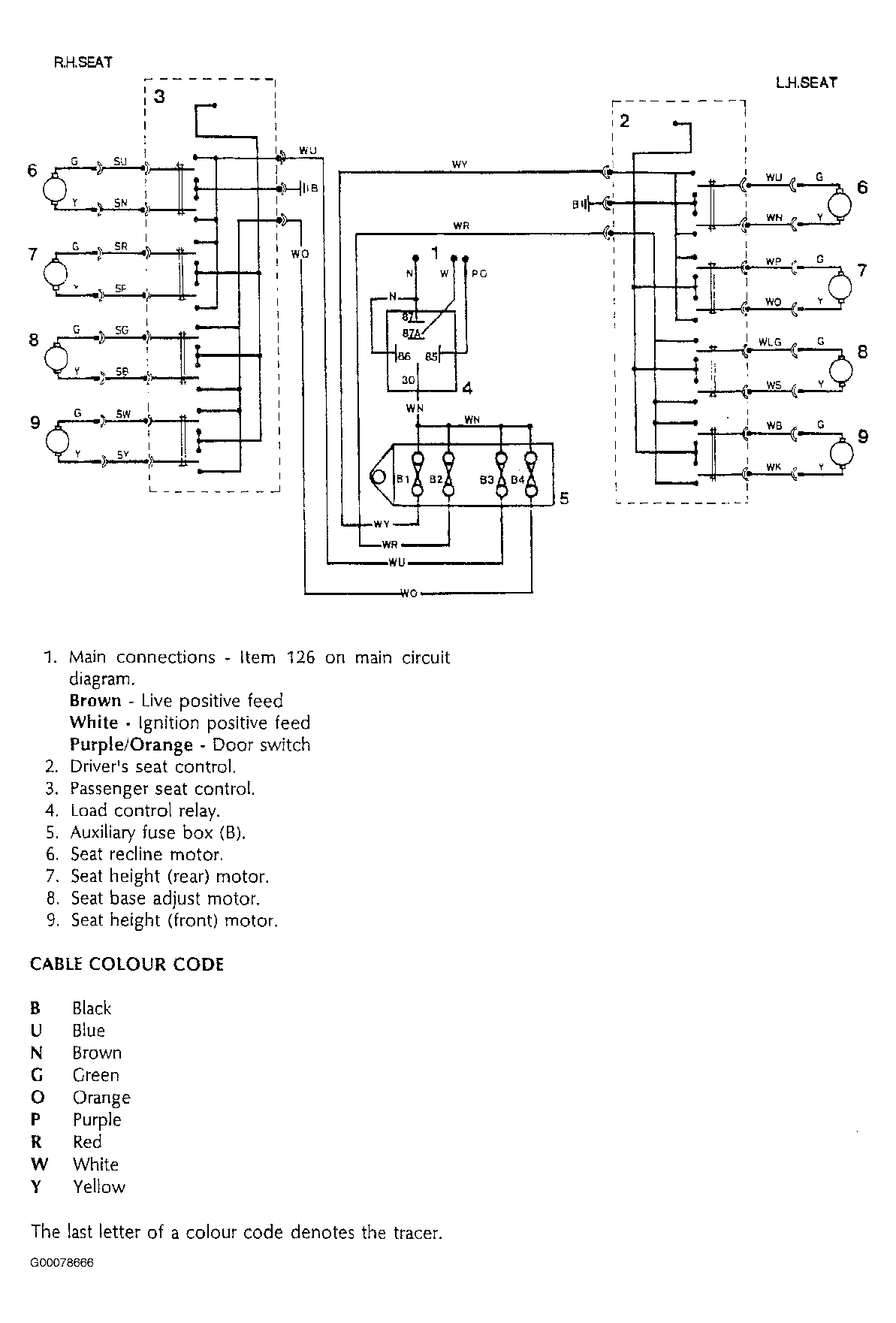

Fig 2: Power Seats Wiring Diagram (1989)
Courtesy of LAND ROVER NORTH AMERICA, INC.

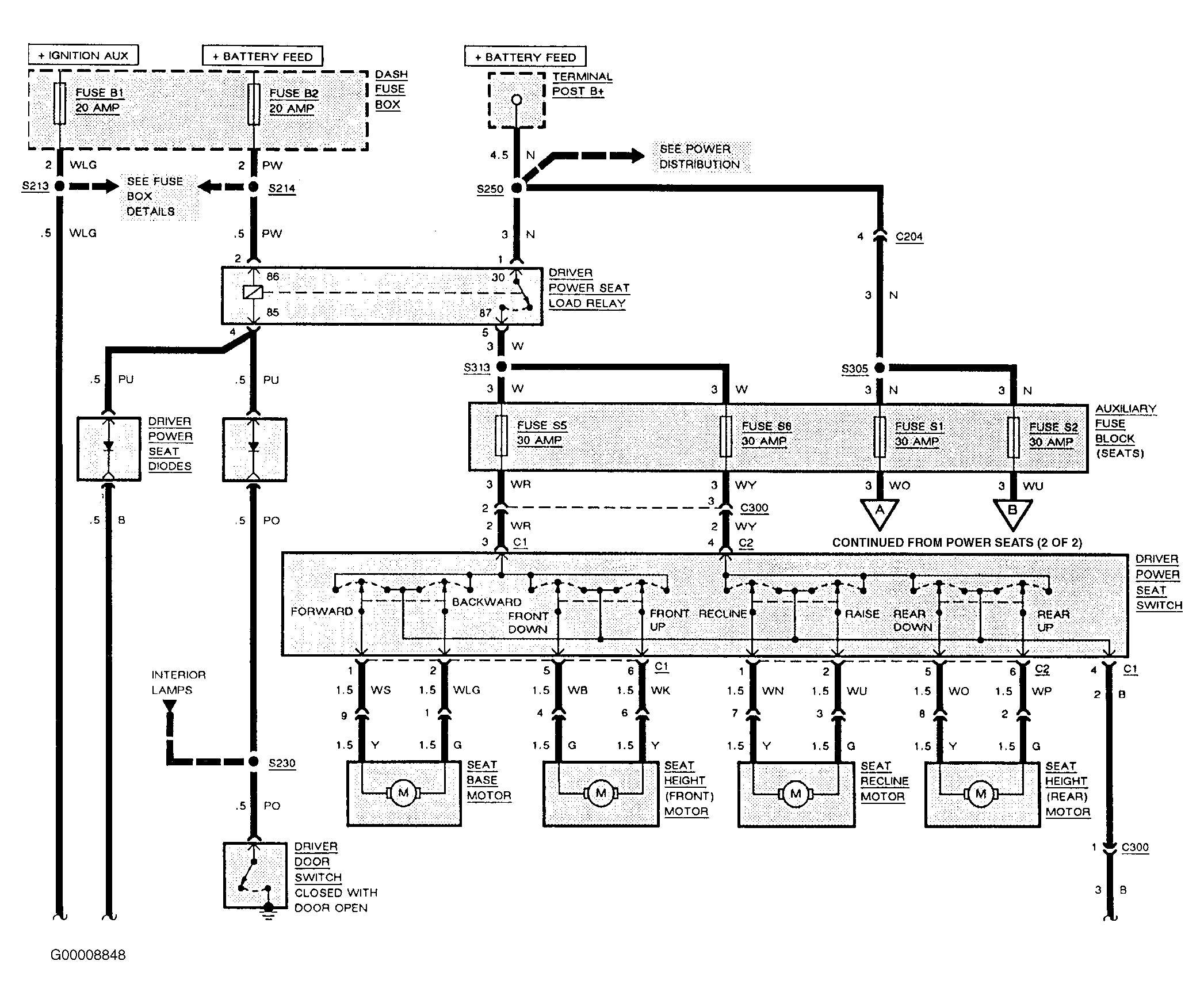

Fig 3: Power Seats Wiring Diagram (1991 - 1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

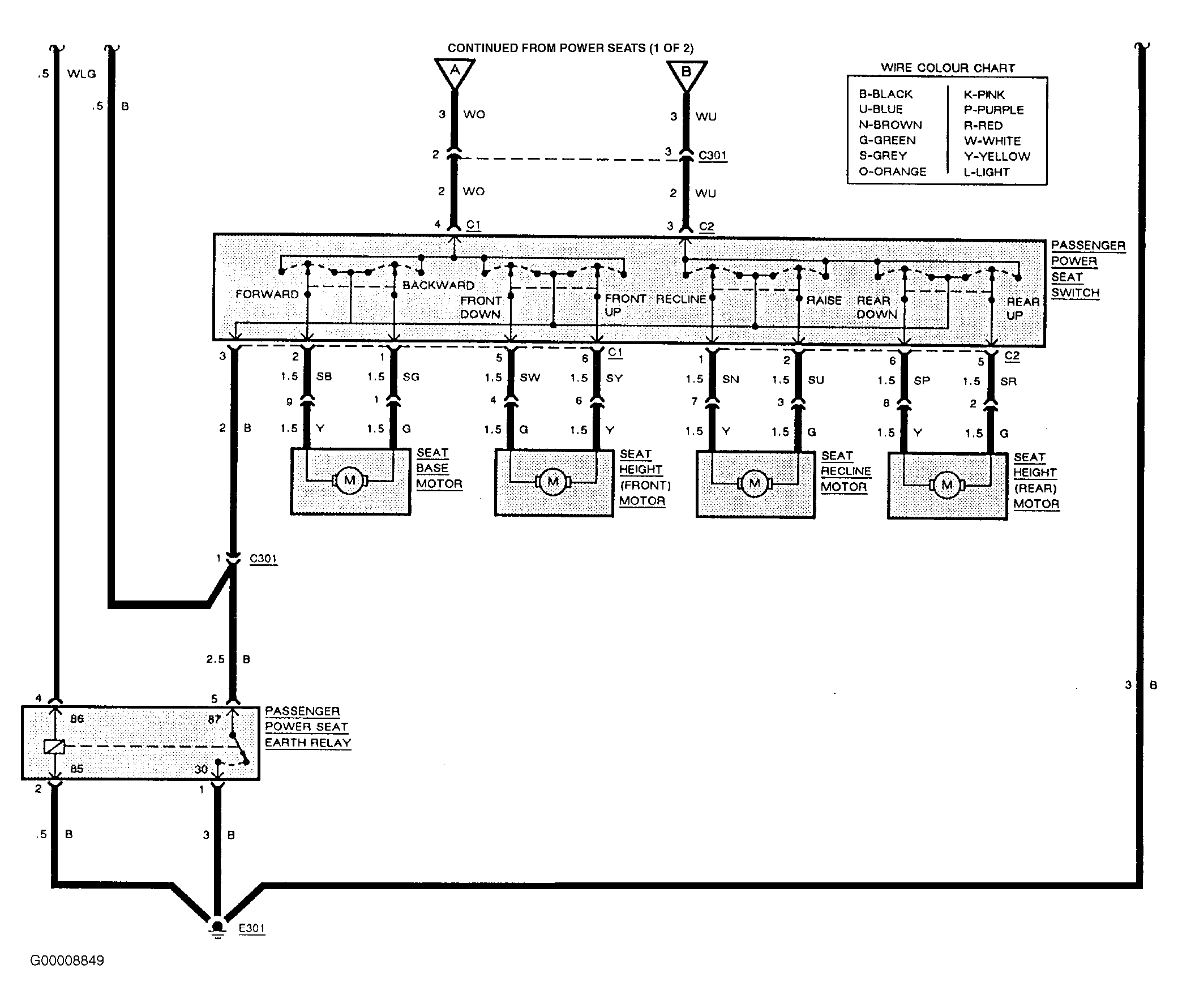

Fig 4: Power Seats Wiring Diagram (1991 - 2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
