Drop Arm Ball
Drop Arm Ball

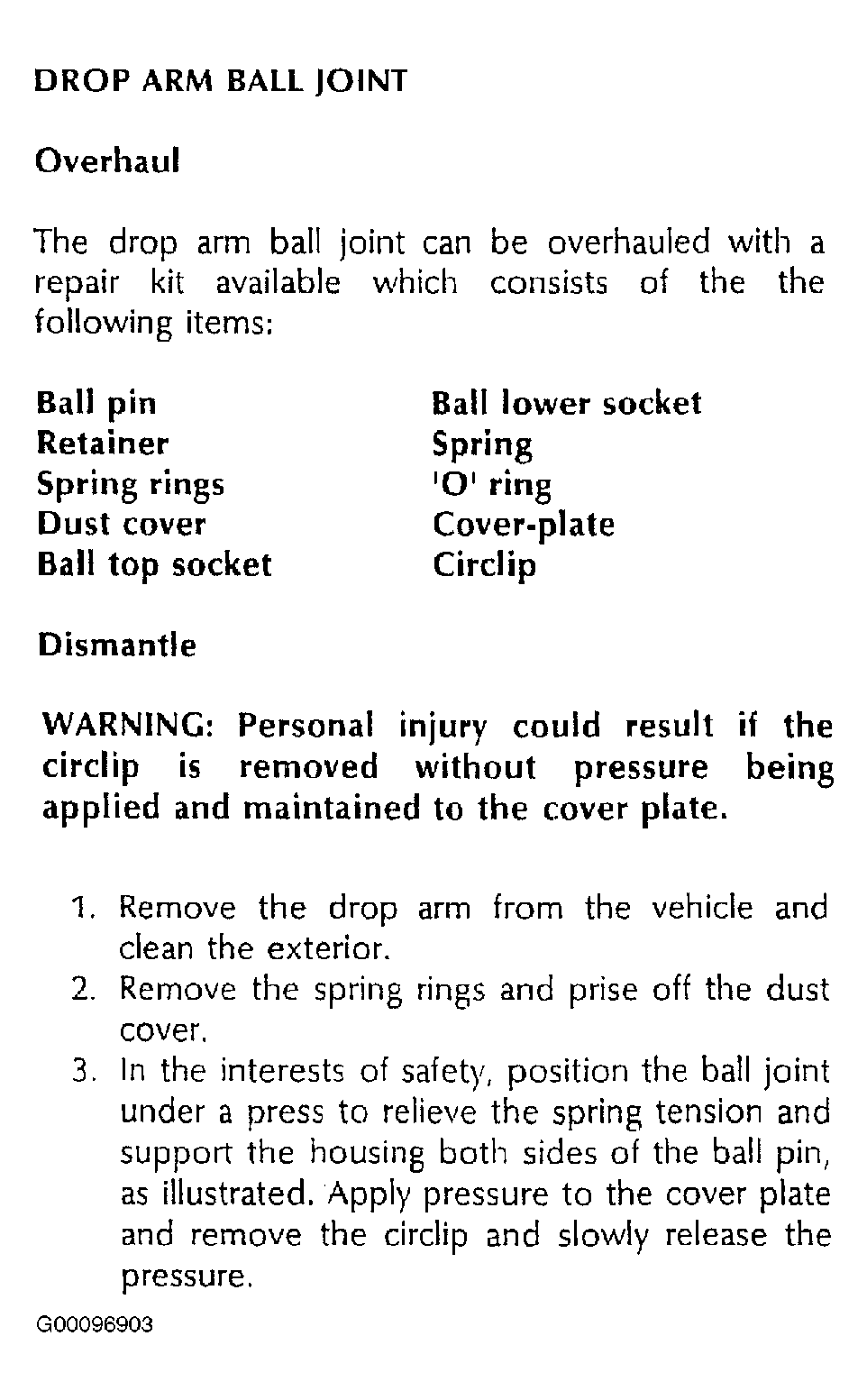

Fig 1: Overhaul Of Drop Arm Ball Joint (1 of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.

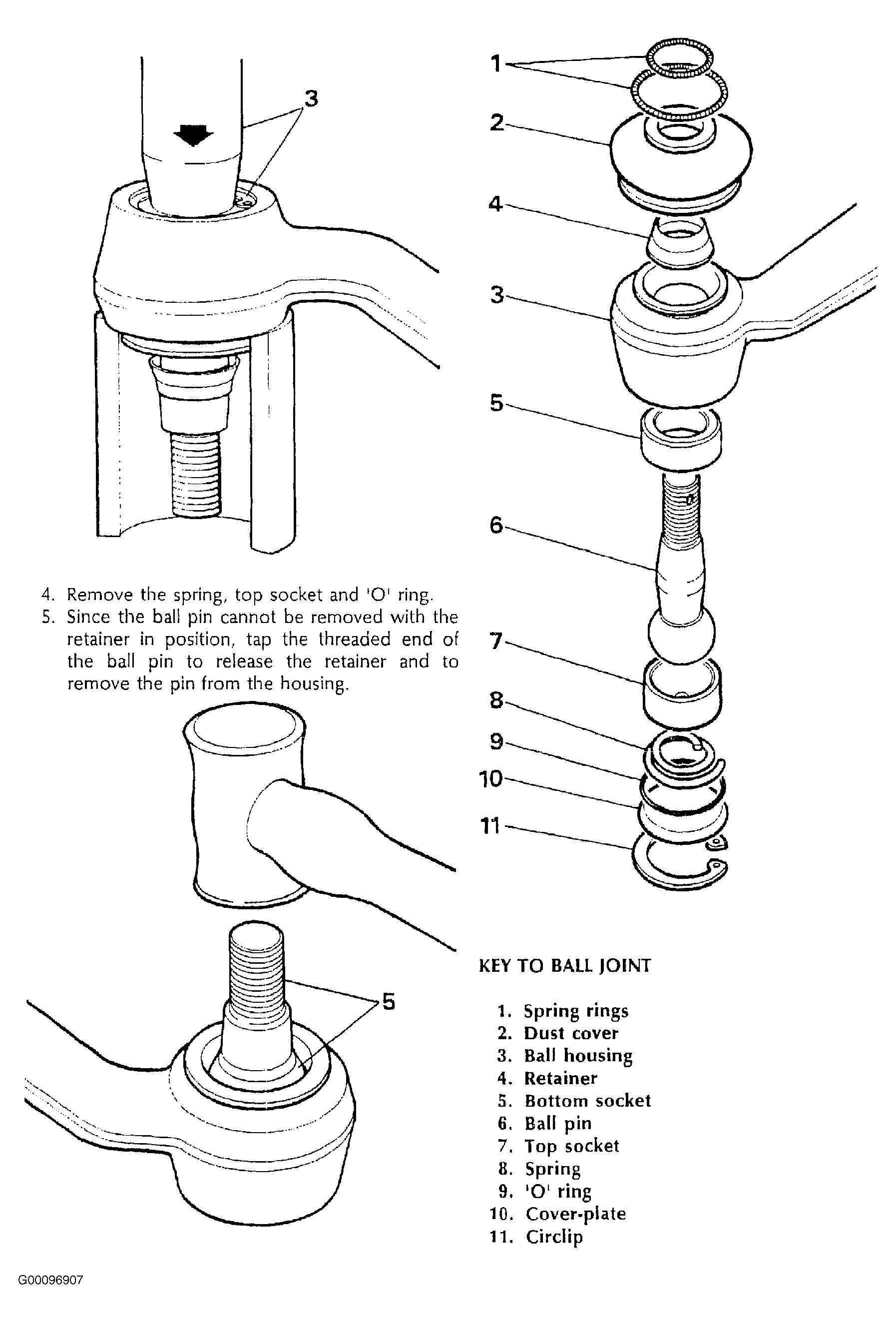

Fig 2: Overhaul Of Drop Arm Ball Joint (2 of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.

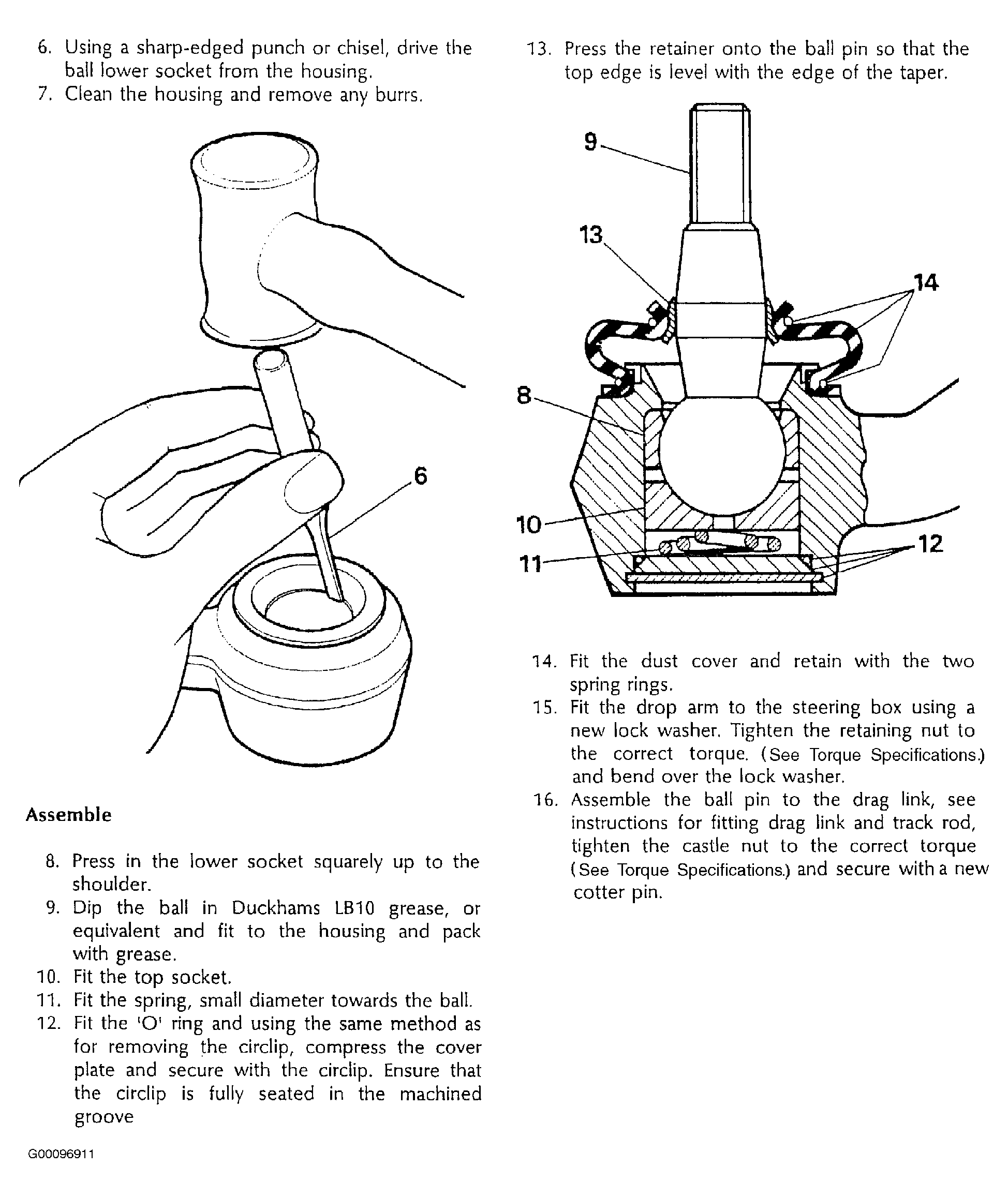

Fig 3: Overhaul Of Drop Arm Ball Joint (3 of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
