Power Steering Fault Diagnosis

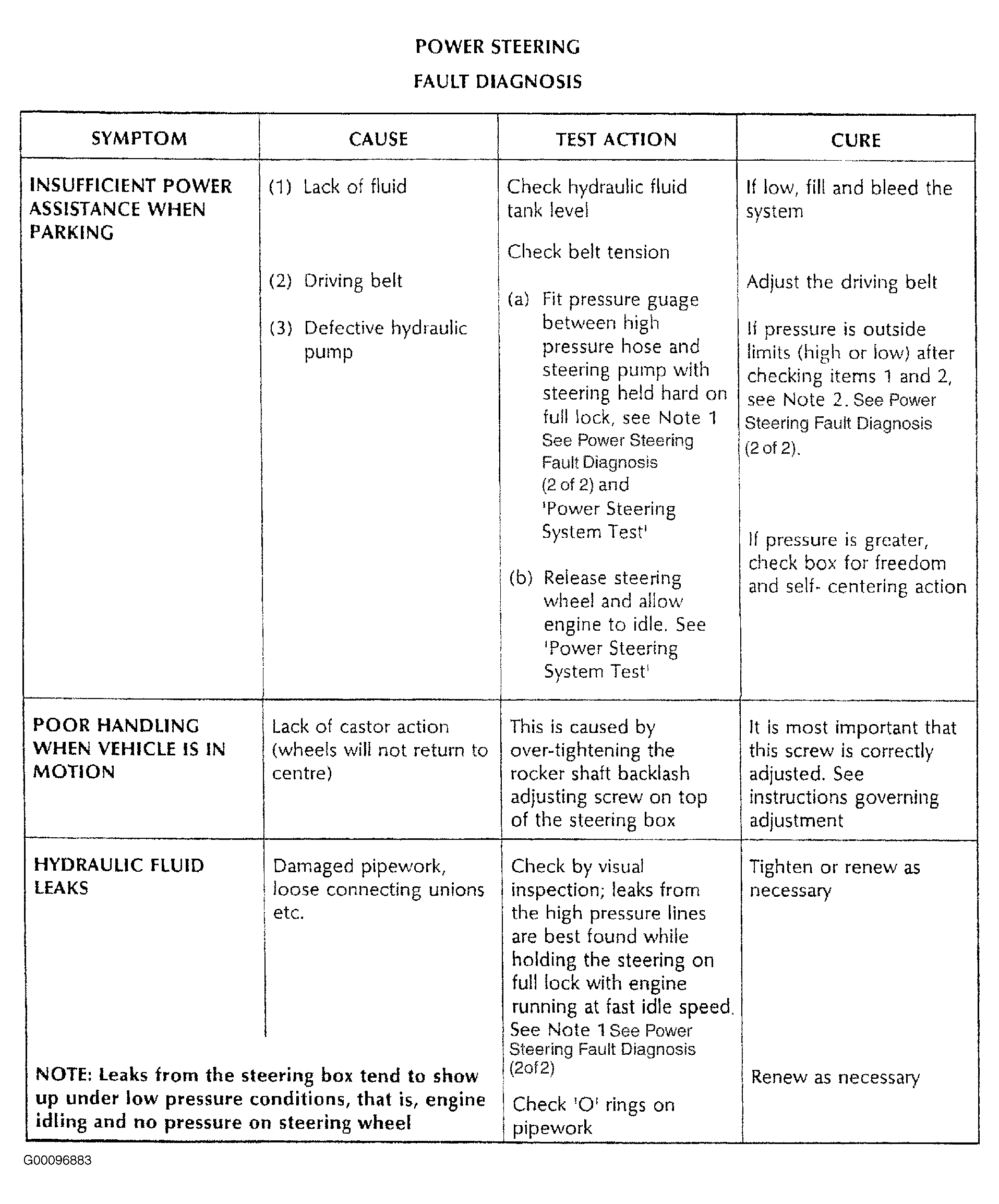

Fig 1: Power Steering Fault Diagnosis (1 of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

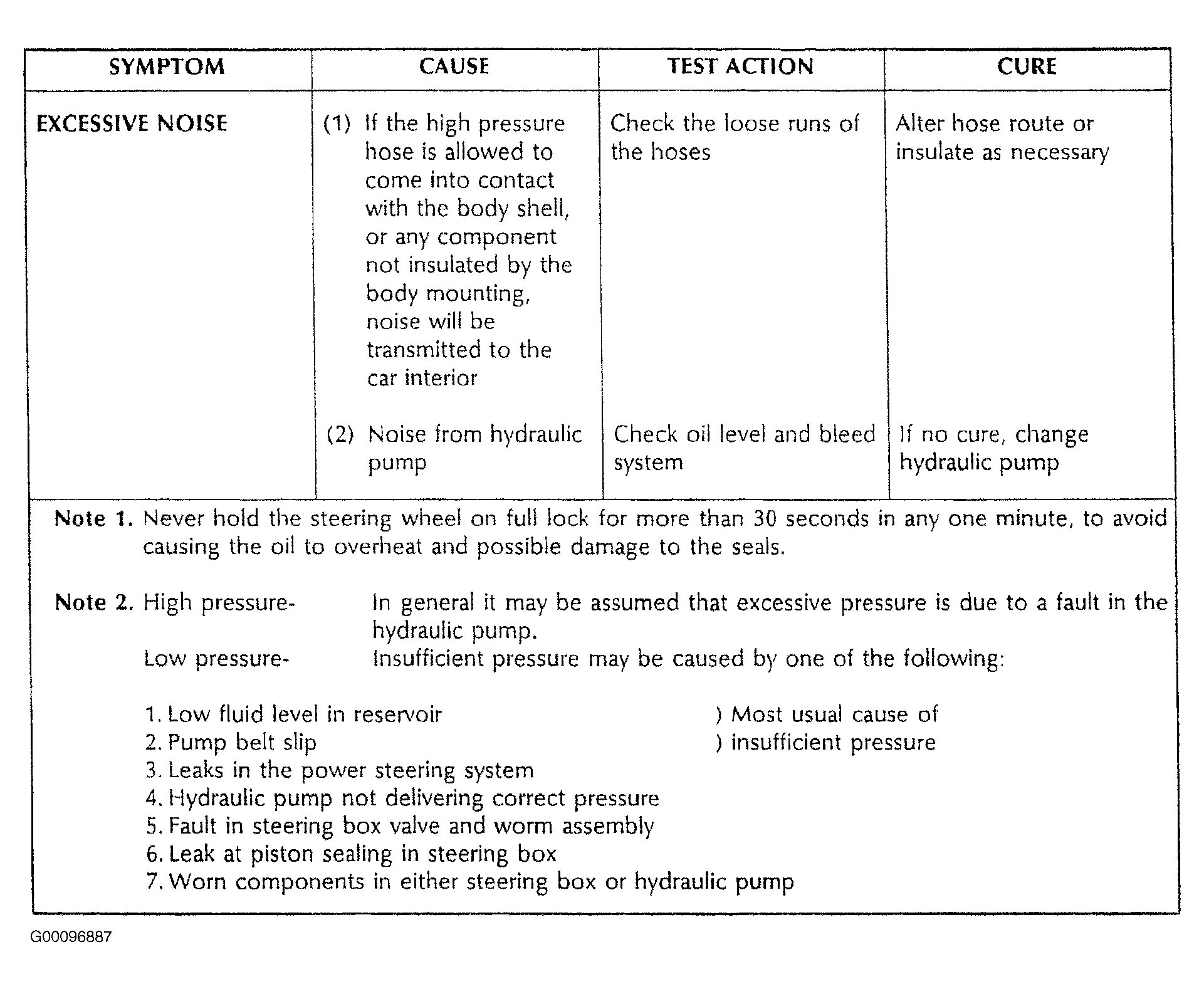

Fig 2: Power Steering Fault Diagnosis (2 of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
