Connector Identification

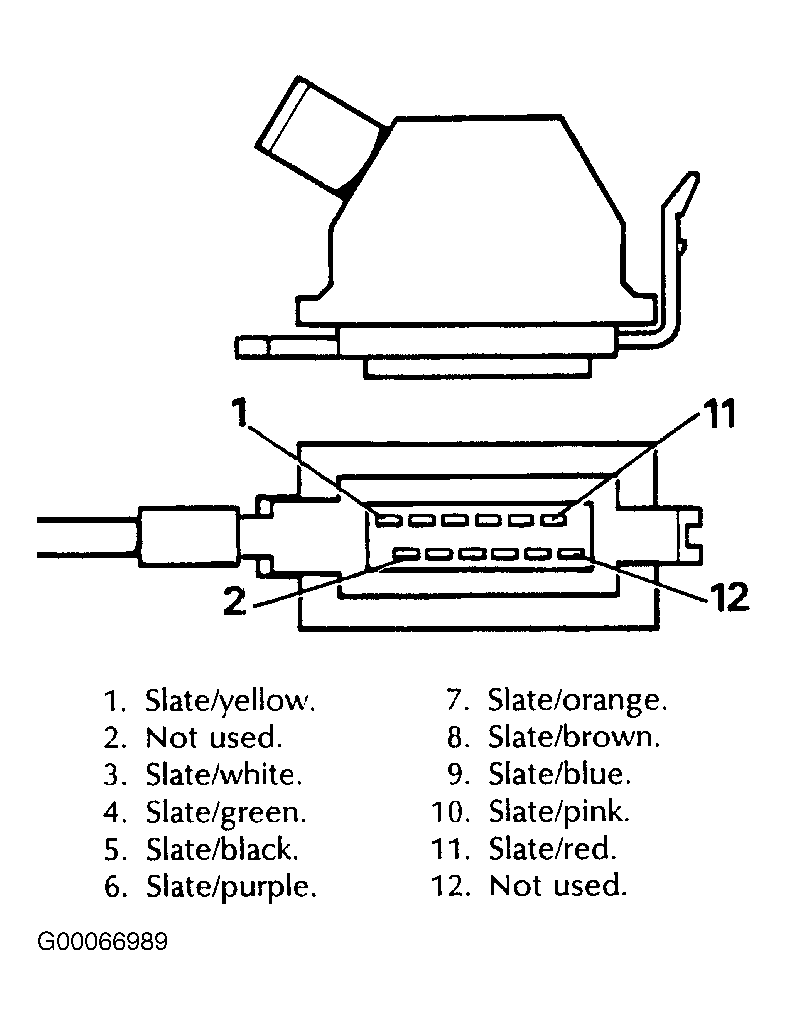

Fig 1: Identifying Anti-Lock Brake Booster Harness Plug

Courtesy of LAND ROVER NORTH AMERICA, INC.

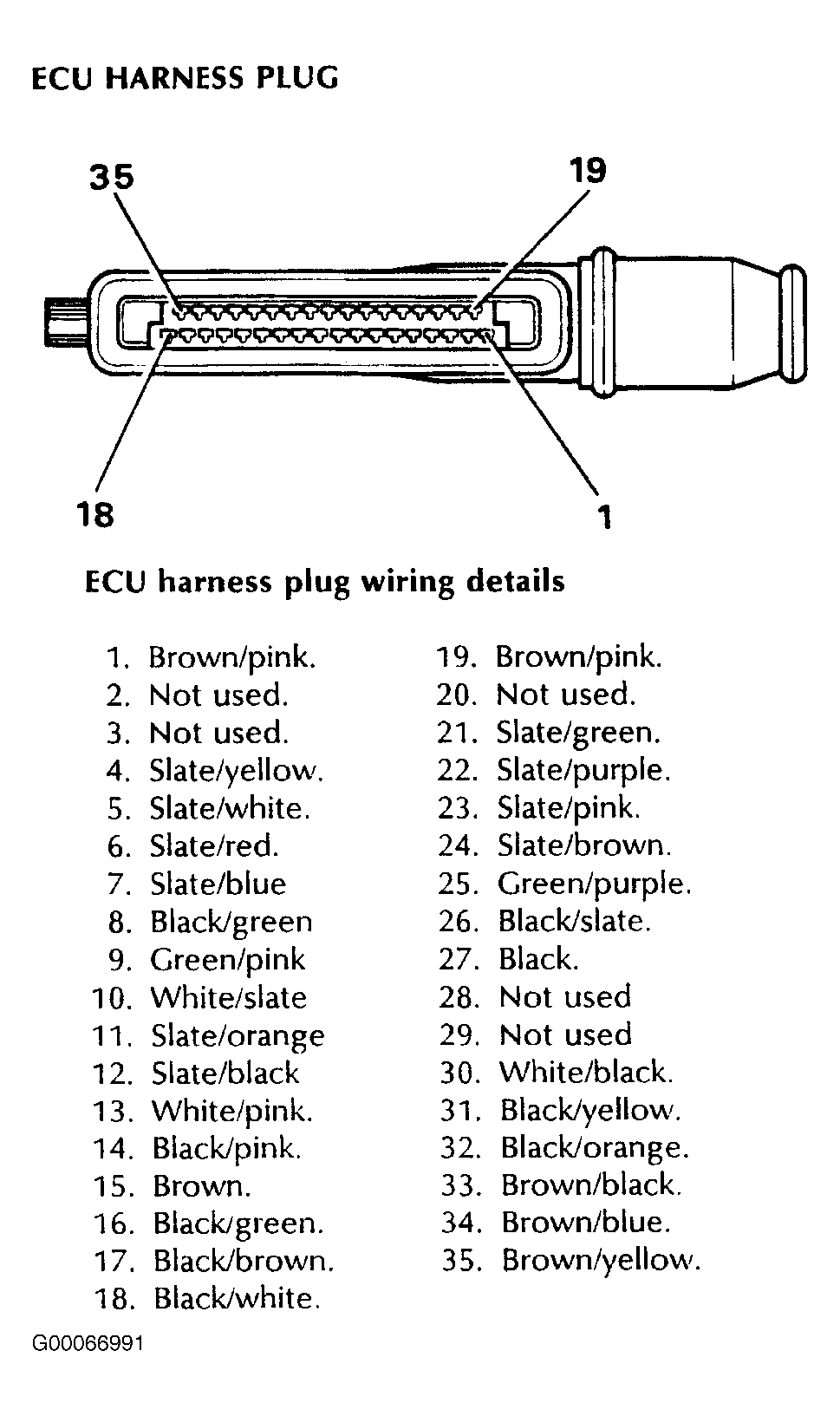

Fig 2: Identifying Anti-Lock Brake ECU Harness Plug

Courtesy of LAND ROVER NORTH AMERICA, INC.
