Stop Light Switch: Installation

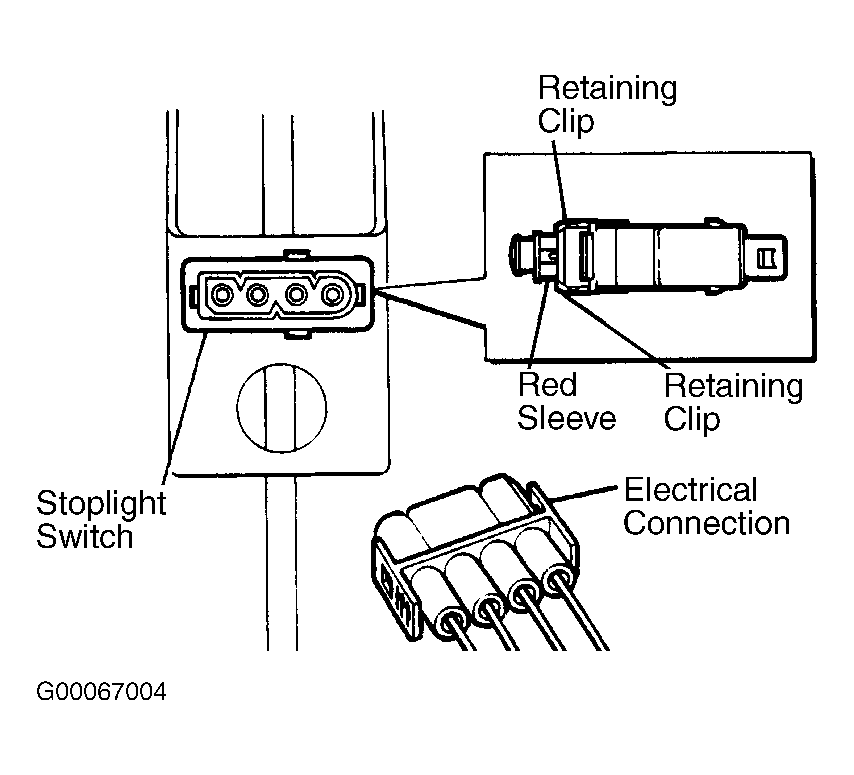

  1. To install, pull Red sleeve and Black plunger of switch fully forward. See Figure .
  2. While depressing brake pedal, fit switch, ensuring retaining clips are FULLY located. See Figure .
  3. While holding switch firmly in place, pull brake pedal back fully, to set switch.
  4. Check operation of switch using diagnostic box.
  5. Reverse remaining removal instructions.
