Diagnostic Trouble Code Definitions

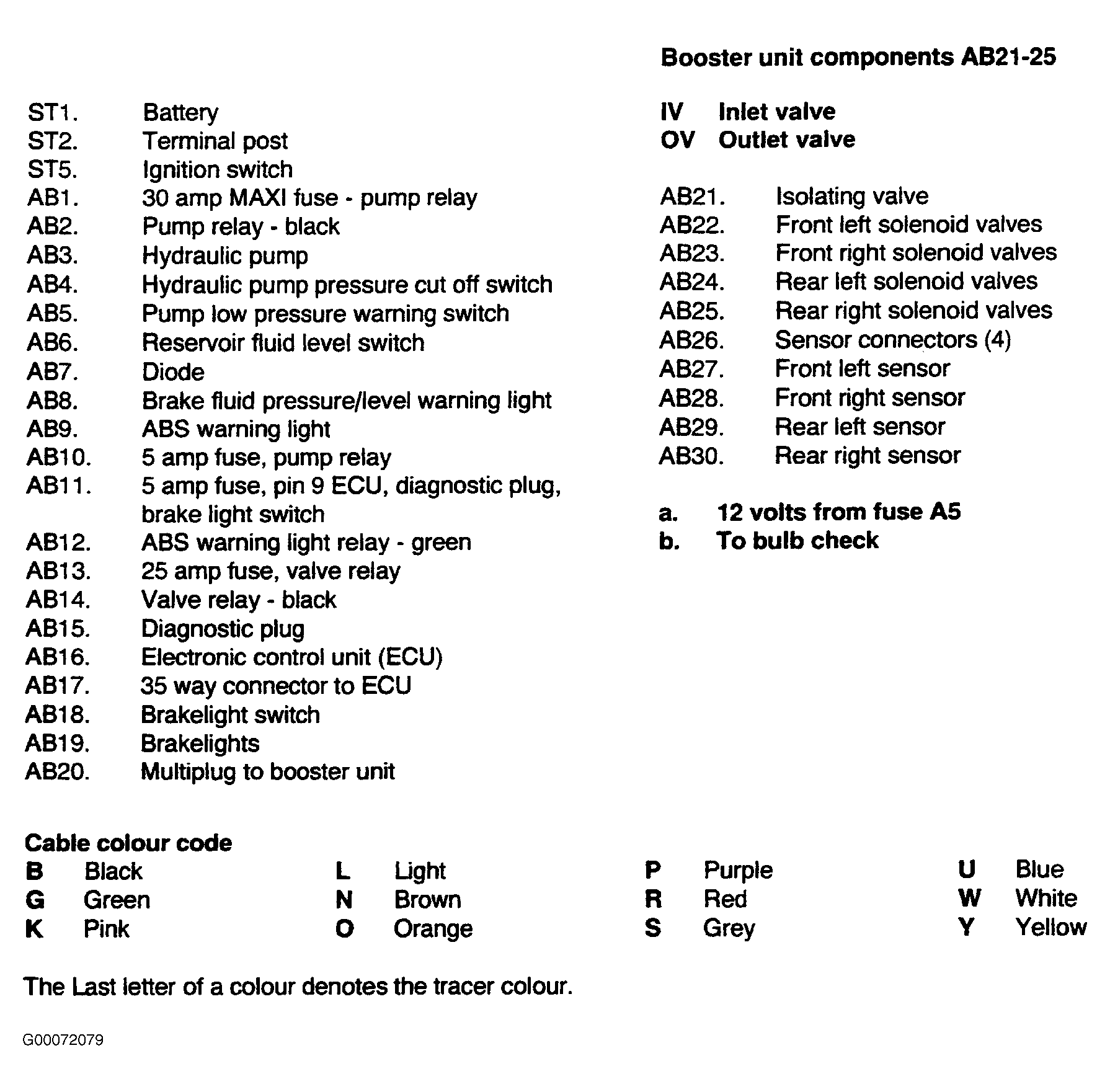

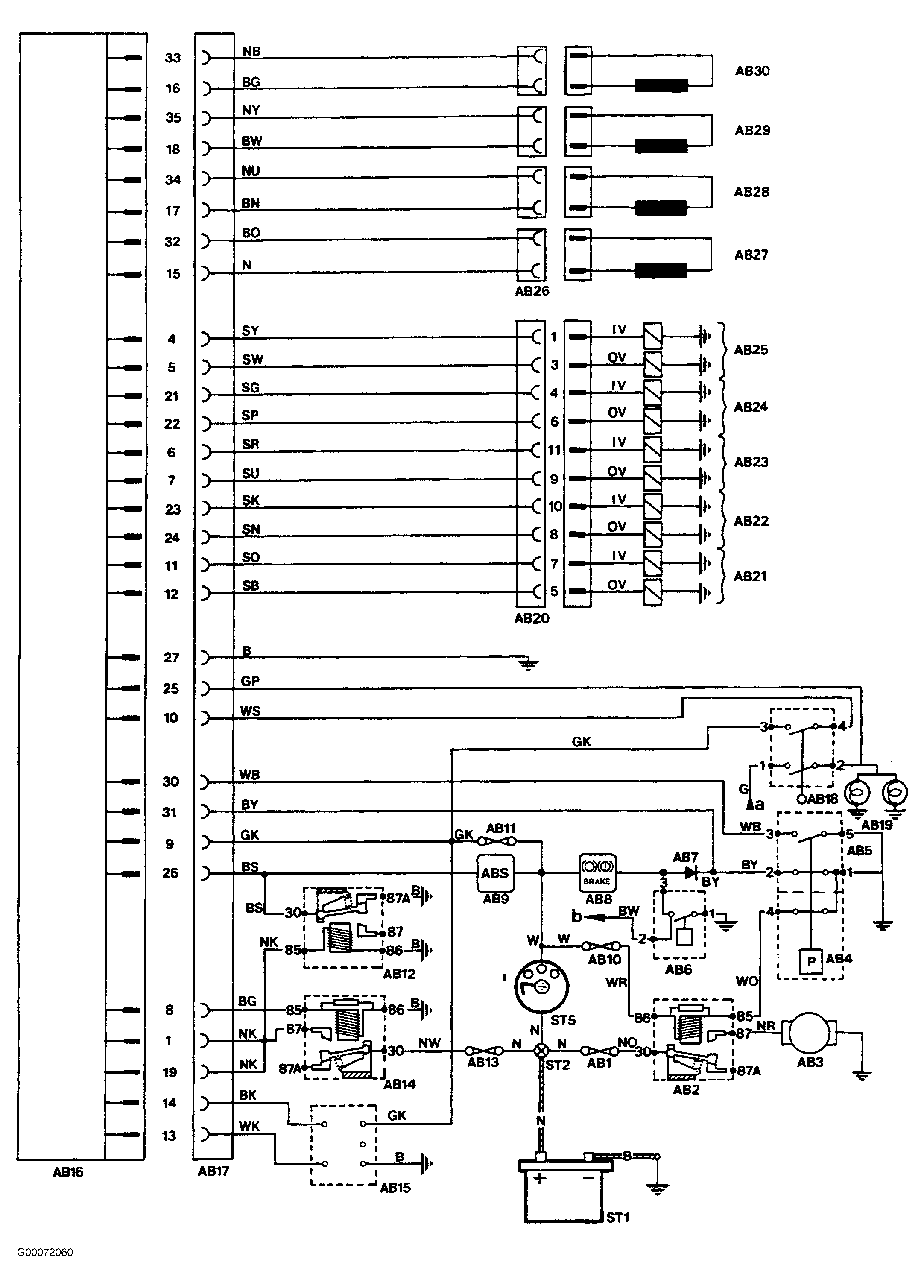

NOTE: For circuit diagram item number identification, see Figure and Figure under WIRING DIAGRAMS.

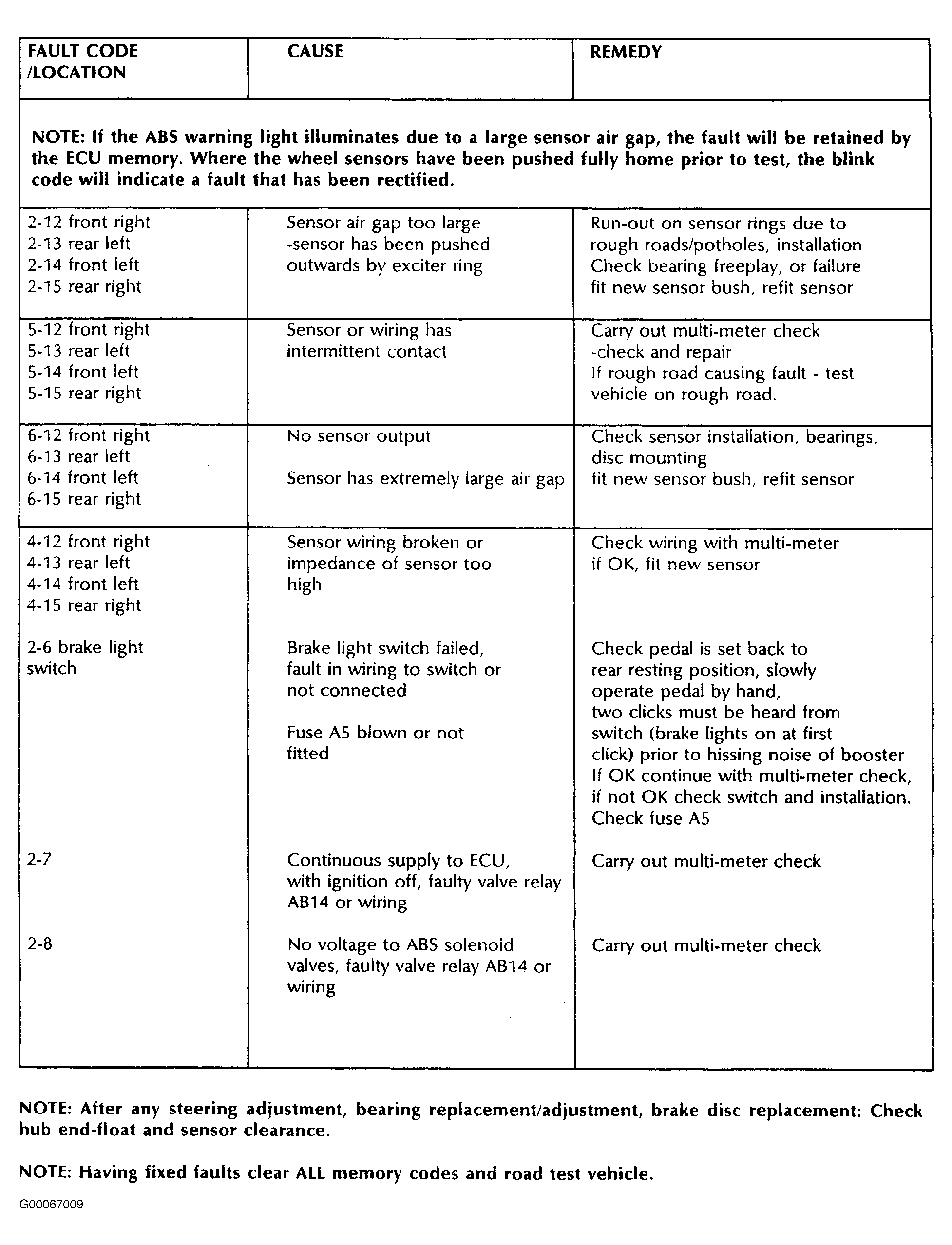

Fig 1: ABS Fault Code (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

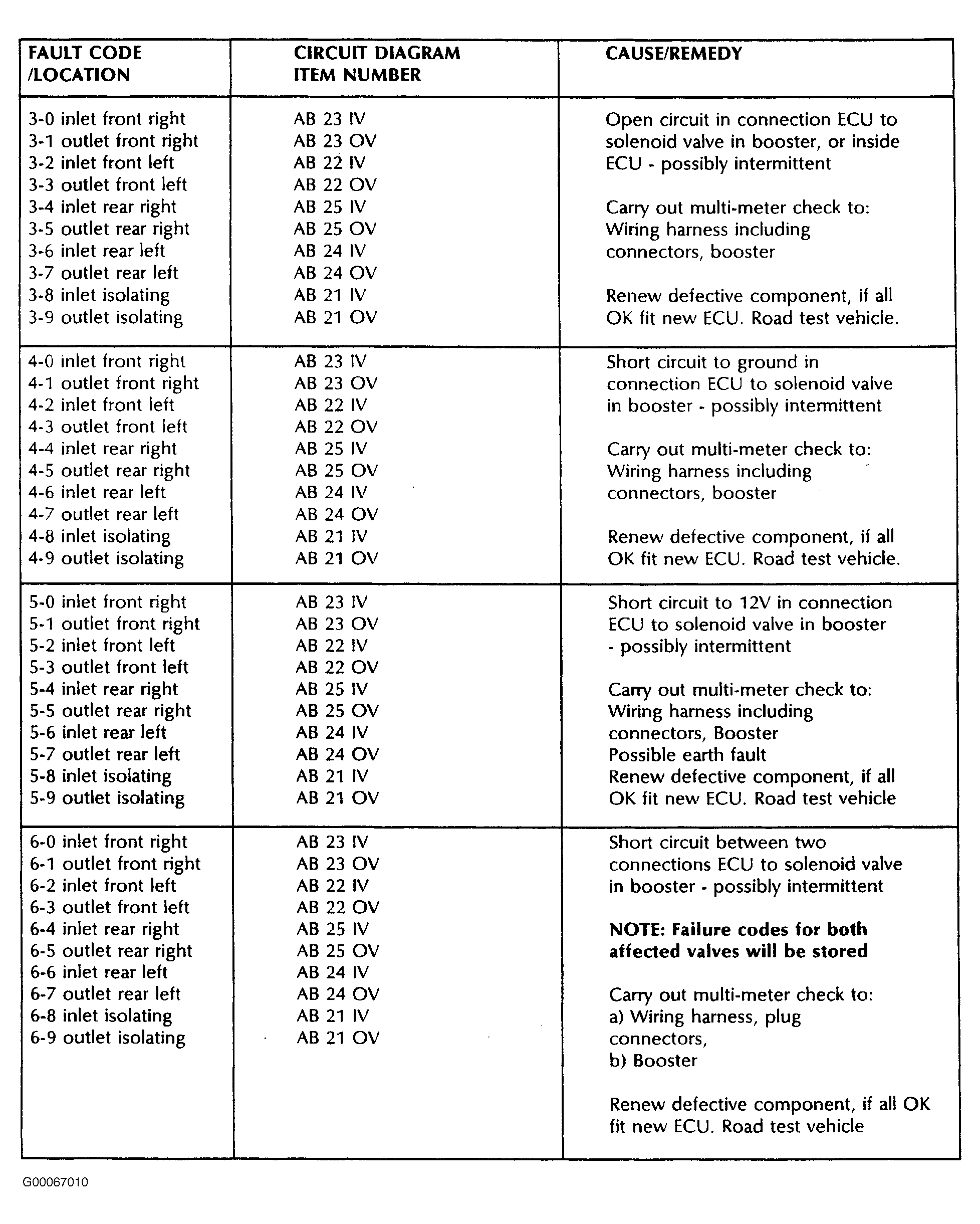

Fig 2: ABS Fault Code (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
