System Operation Check

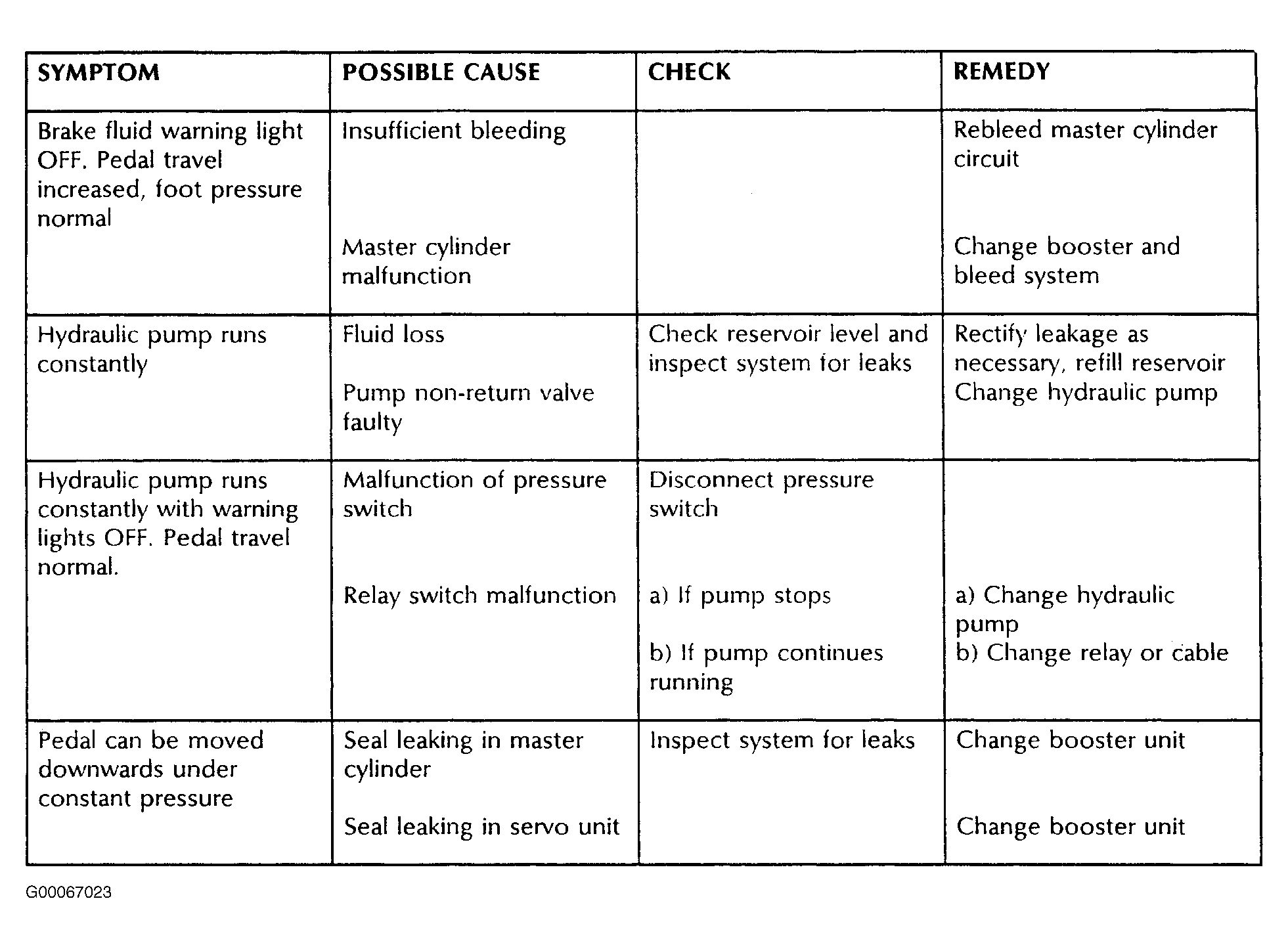

Fig 1: Fault Diagnosis (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

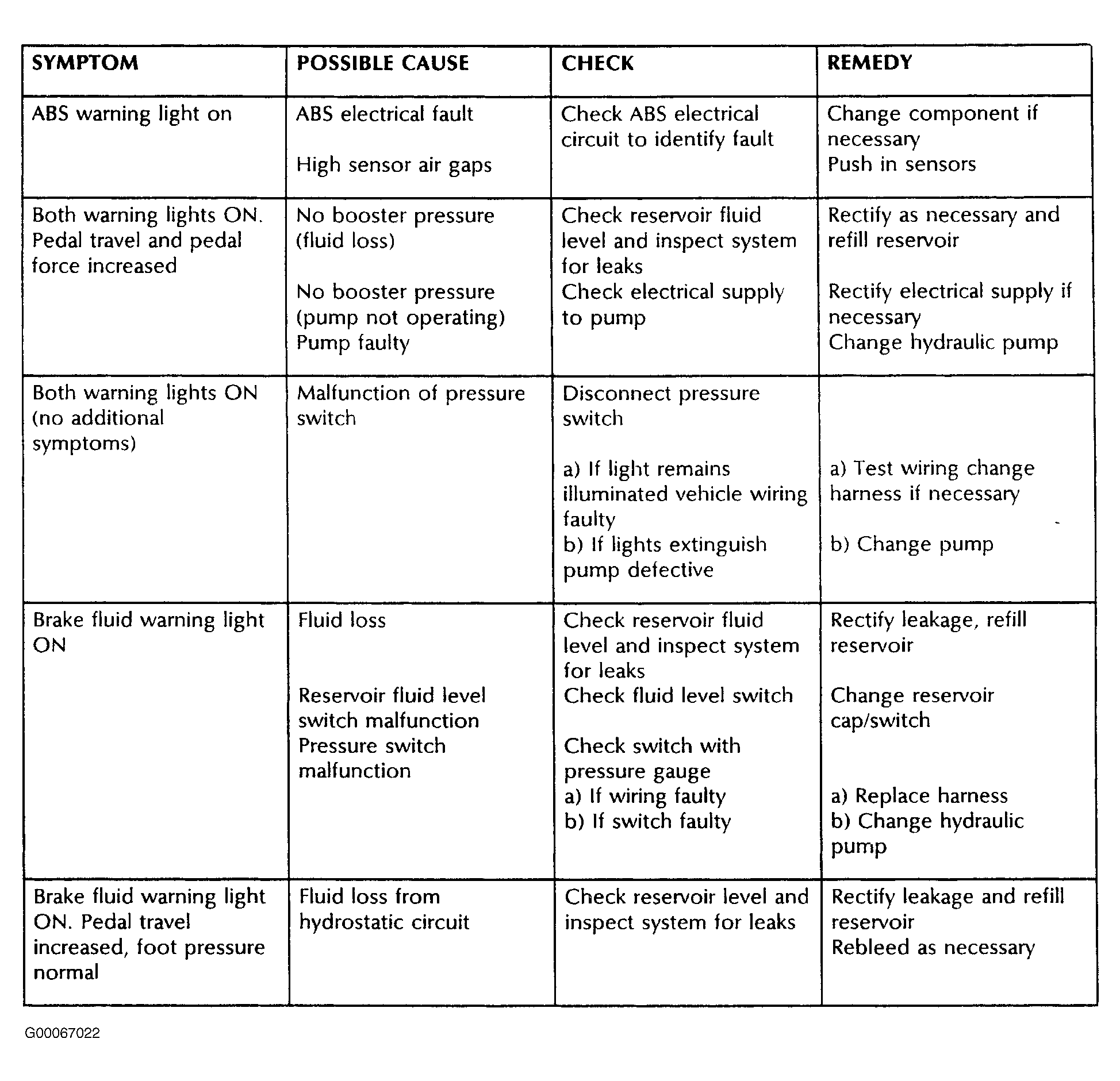

Fig 2: Fault Diagnosis (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
