Drop Arm Ball Joint: Reassembly

1. Press in lower socket up to shoulder. See Fig 1 .
2. Dip ball pin in grease, install to housing and pack with grease. See Fig 1 .
3. Install top socket. See Fig 1 .
4. Install spring, small diameter towards ball. See Fig 1 .
5. Install "O" ring. Compress cover plate and install circlip, ensure circlip is seated. See Fig 1 .
6. Press retainer onto ball pin until top edge is level with edge of taper. See Fig 1 .
7. Install dust cover and retain with 2 spring rings. See Fig 1 .
8. Install drop arm. See DROP ARM  under REMOVAL & INSTALLATION. Use new lock washer. Tighten nut to 130 ft. lbs. (176 N.m). Bend over lock washer.
9. Install ball pin to drag link. See DRAG LINK & DRAG LINK ENDS  under REMOVAL & INSTALLATION.

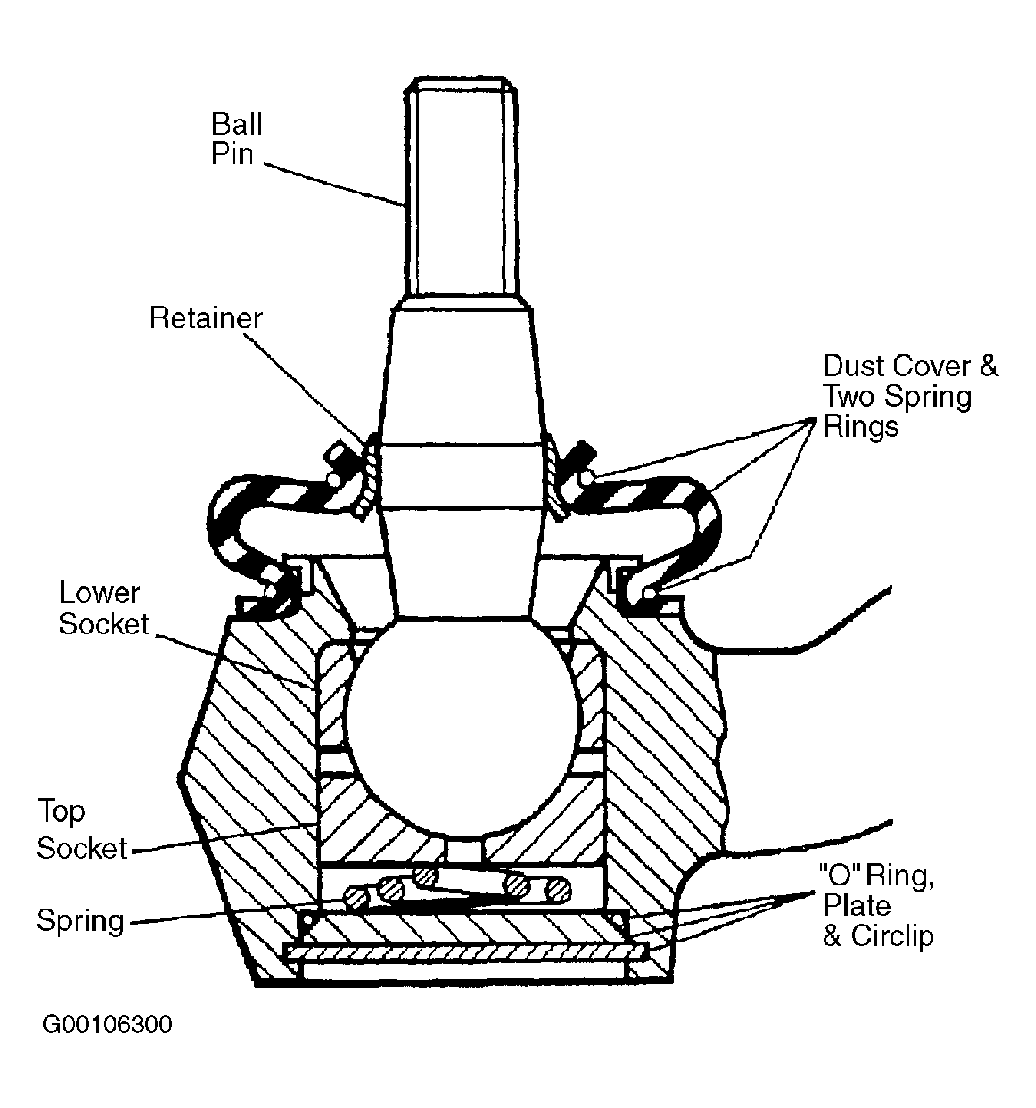

Fig 1: Assembled View Of Ball Joint Socket Components

Courtesy of LAND ROVER NORTH AMERICA, INC.
