Test C

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION  table under WIRING DIAGRAMS.

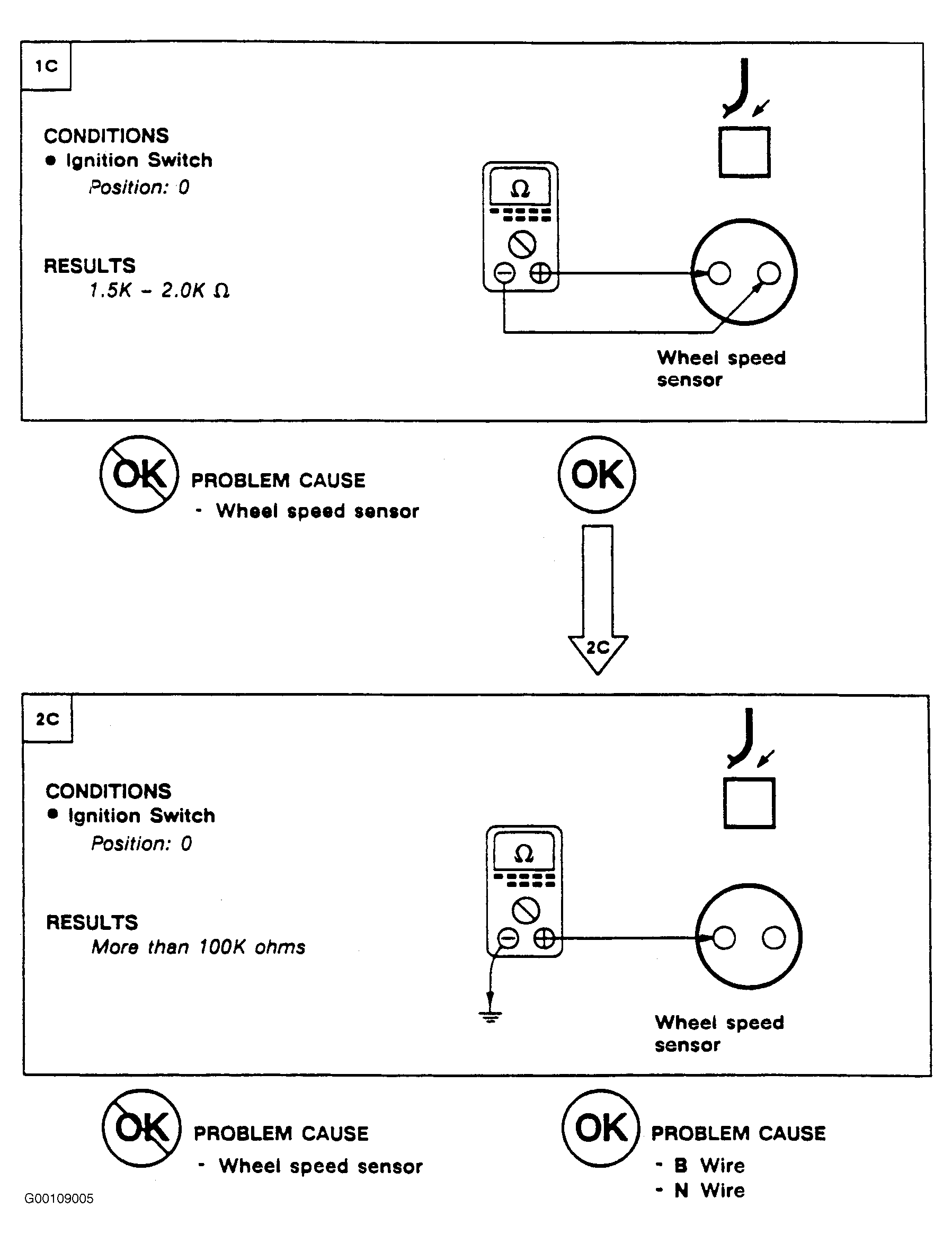

Fig 1: Test C
G00109005Courtesy of LAND ROVER NORTH AMERICA, INC.
