Test H

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION  table under WIRING DIAGRAMS.

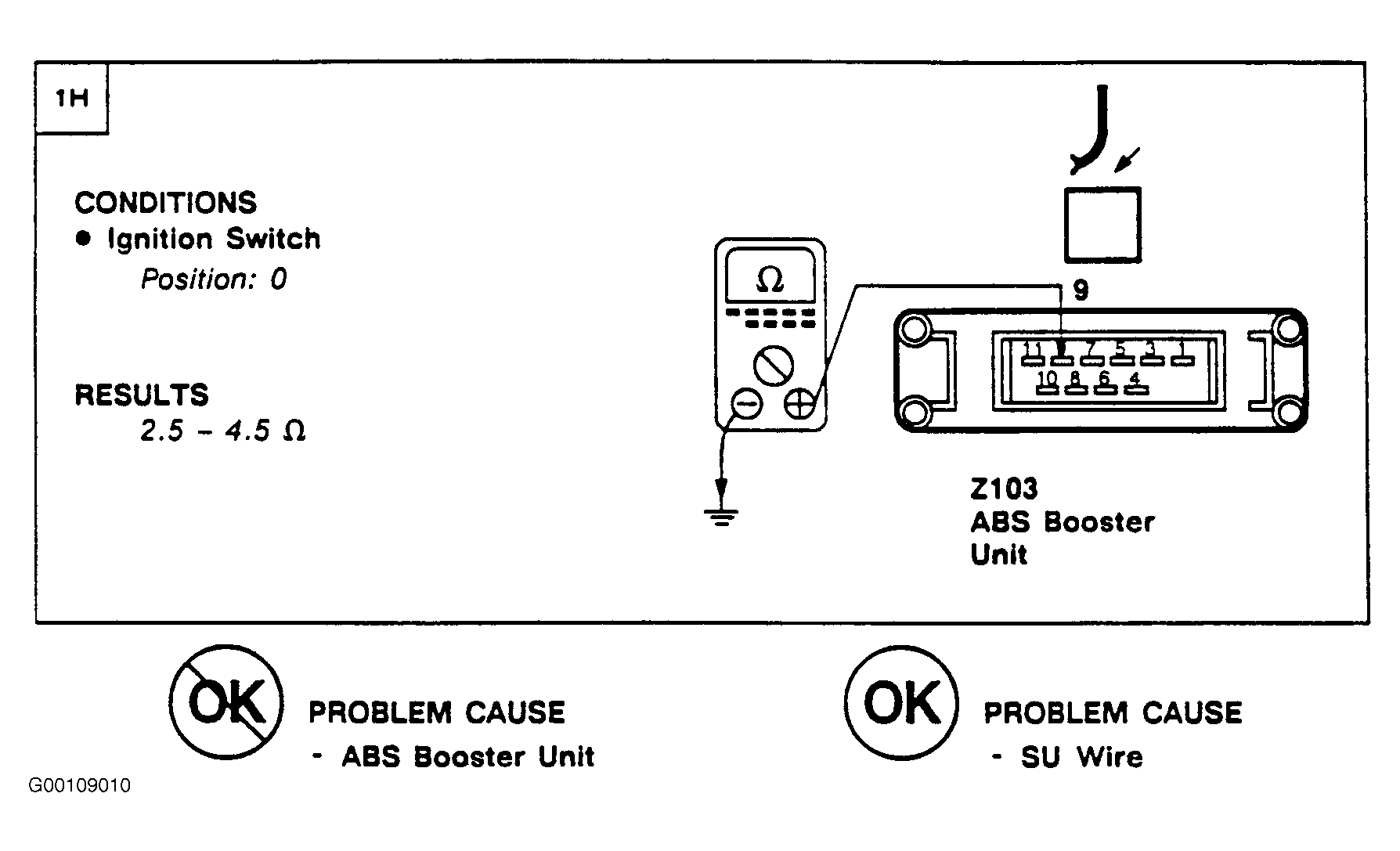

Fig 1: Test H
G00109010Courtesy of LAND ROVER NORTH AMERICA, INC.
